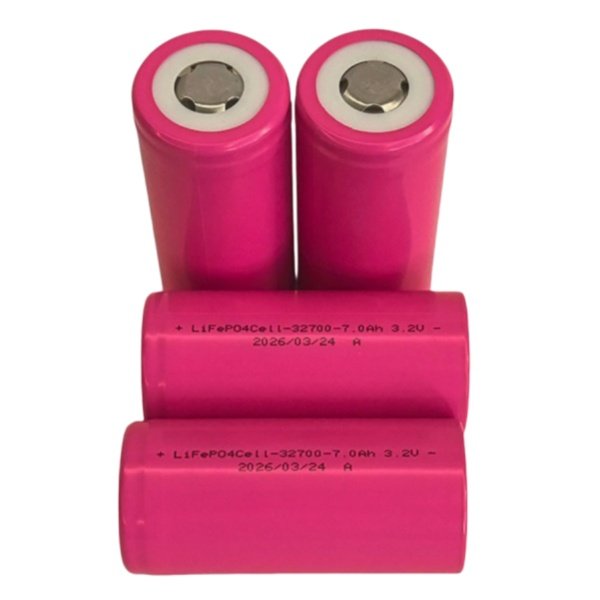

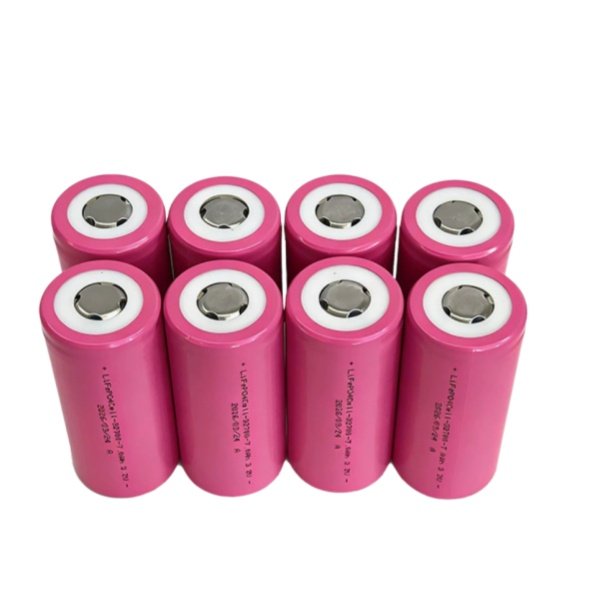

3.2V 32700 7000mAh High Capacity Cylindrical LiFePO4 Battery Cell
Model: HX-TS-082
Name: 32700-7Ah Wide Temperature Cell
Voltage: 3.2V
Capacity: 7Ah
Size: 32.7mm* 70.9mm(Max)
32700 Series LiFePO4 Prismatic Cell Basic Parameter | https://lnclibattery.com
| Parameter | HX-TS-065 | HX-TS-039 (High Temp) | HX-TS-082 (High Capacity) | HX-TS-080 (Wide Temp) |
|---|---|---|---|---|
| Nominal Capacity | ≥6.0Ah / ≥6.2Ah | ≥6.0Ah / ≥6.2Ah | ≥7.0Ah | ≥6.0Ah / ≥6.2Ah |
| AC Impedance (1000Hz) | ≤8 mΩ | ≤8 mΩ | ≤8 mΩ | ≤8 mΩ |
| DC Impedance (50% SOC) | ≤16 mΩ | ≤16 mΩ | ≤17 mΩ | ≤16 mΩ |
| Nominal Voltage | 3.2V | 3.2V | 3.2V | 3.2V |
| Max Charge Current | 18A | 18A | 21A | 18A |
| Max Discharge Current | 18A | 18A | 21A | 18A |
| Pulse Discharge (3s) | 60A | 60A | 42A | 60A |
| Cycle Life | 2200 / 2000 cycles | 2500 / 2000 cycles | 2000 cycles | 2000 / 1800 cycles |
| Operating Temperature | -20°C ~ 60°C | -20°C ~ 60°C | -20°C ~ 60°C | -20°C ~ 60°C |
| Storage Temperature | 0°C ~ 45°C | 0°C ~ 45°C | 0°C ~ 45°C | 0°C ~ 45°C |
Pls Feel free to contact us get each specification at details.
32700 Series LiFePO4 Cylinderical Battery Cell
High Safety · Long Cycle Life · Industrial Energy Storage Solution
Product Overview
The 32700 Series cylinderical LiFePO4 cells are designed for high-reliability energy storage applications.
With advanced lithium iron phosphate chemistry, these cells provide excellent thermal stability,
enhanced safety performance, and long cycle life up to 2500 cycles.
Multiple variants including standard, high-temperature, high- capacity and wide-temperature models ensure flexibility
for different industrial and renewable energy systems.

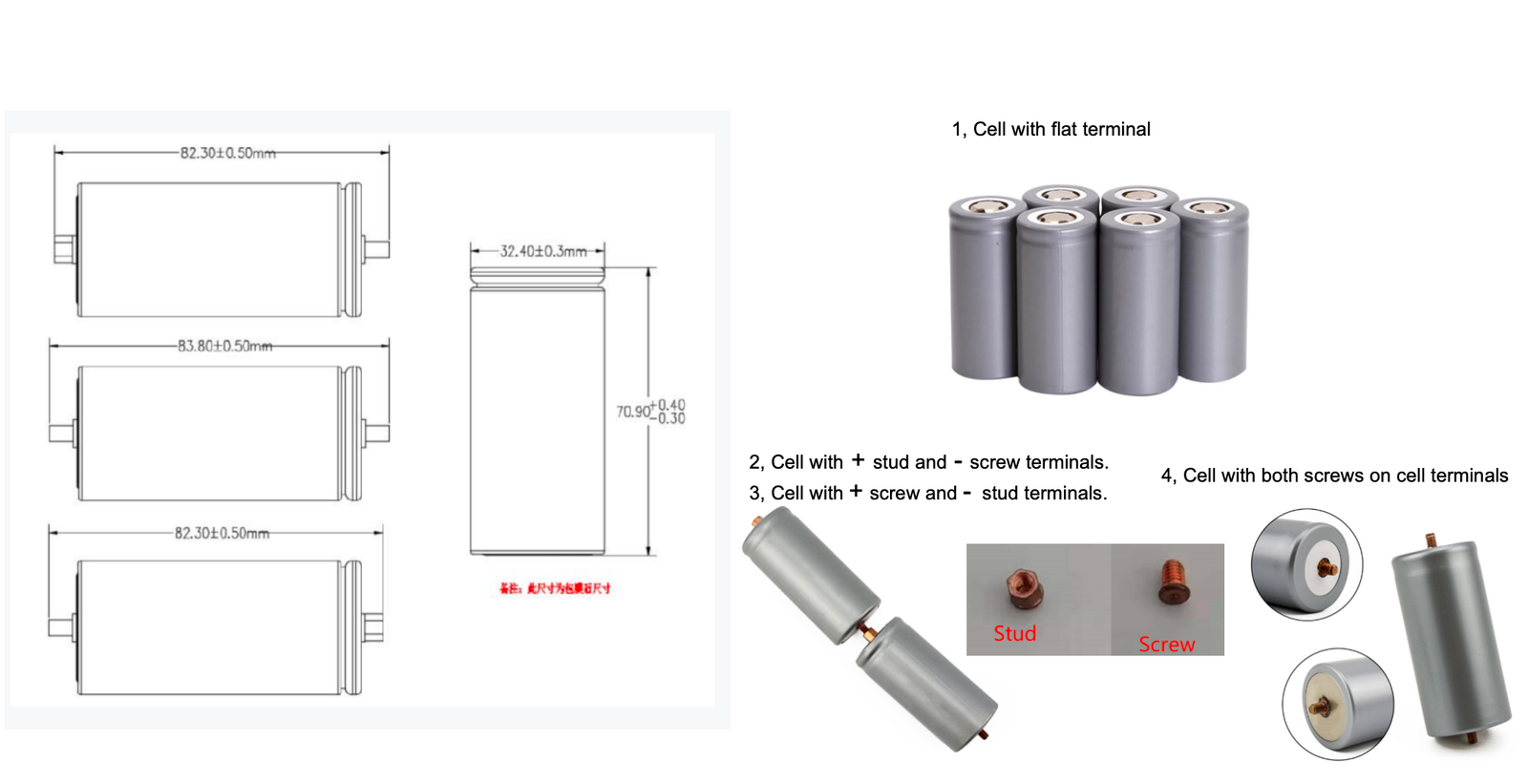

With Screw and Nuts Types:
Key Features
Applications
- Solar energy storage systems
- Home energy storage (ESS)
- Industrial UPS backup systems
- Electric vehicles (E-bike / E-scooter)
- Telecom base stations
- Off-grid power systems
Engineering Advantage
Optimized electrode structure and low-impedance design ensure stable output under high load conditions.
High-temperature models are engineered for extreme environments with enhanced thermal stability.
Quality Assurance
All LNC lithium battery cells are manufactured under strict ISO quality systems and undergo full testing before shipment,
ensuring consistent performance, safety, and reliability for global industrial applications.
