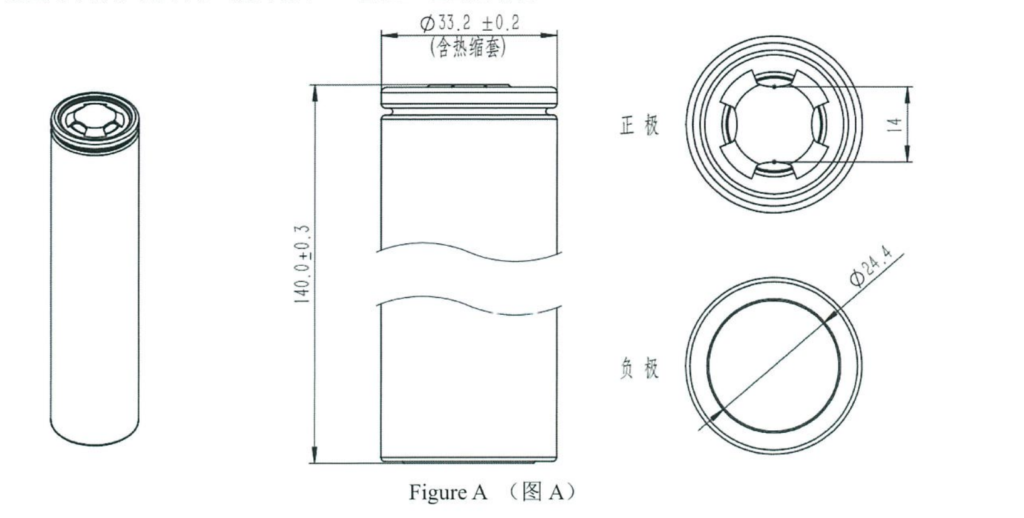

3.2V 15Ah 32140 LiFePO4 Cells
Model: LNC32140-150000
Nominal Voltage: 3.2V
Nominal Capacity: 15000mAh
Material: LFP
3.2V 15.0Ah 32140 LiFePO4 Cell
Summary
| PROJECT | SPECIFICATION | CONDITION |
|---|---|---|
Nonimal Capacity |
15.0Ah |
0.5C @25ºC±2ºC |
Minimum Capacity |
14.5Ah |
0.5C @25ºC±2ºC |
Operating Voltage |
2.0~3.6V |
/ |
Nominal Voltage |
3.2V |
/ |
Internal Resistance(AC) |
1.0mΩ≤IR<3.0mΩ |
AC 1KHz, 30% SOC, standard deviation≤0.2mΩ |
Weight |
295±10g |
contain package |
Energy Density |
162Wh/kg; 396Wh/L |
/ |
Operating Temperature |
Charging temperature: 0~60ºC; Discharge temperature: -30~60ºC |
No matter what charging and discharging mode the cell is in, once the cell surface temperature exceeds this range, the charging and discharging should be stopped. |
Storage Temperature |
3 months: -20~45ºC;
6 months: -10~25ºC |
/ |
Cycle Life |
Standard Cycle: ≥2500 cycles at 25±2ºC, 0.5C/0.5C, 80%SOH;
Fast Charge Cycle: ≥3000 cycles at 25±2ºC, fast charge/1C, 70%SOH. |
/ |
Appearance |
Without break, scratch, distortion, contamination, leakage and so on. |
/ |
Charging Parameters
| PROJECT | SPECIFICATION | CONDITION |
|---|---|---|
Standard Charging Mode |
/ |
0.5C CC/CV, cut off 3.6V/0.05C |
Standard Charging Current |
0.5C |
/ |
Max. Continuous Charging Current |
1, -10~0ºC, 0.2C;
2, 0~10ºC, 0.33C;
3, 10~20ºC, 0.5C;
4, 20~45ºC, 1C;
5, 45~50ºC, 0.5C;
6, 50~60ºC, 0.2C. |
/ |
Standard End-of-Charge Voltage |
3.6V |
/ |
Max.End-of-Charge Voltage |
3.6V |
No matter what charging mode the is in, once the cell voltage exceeds this range, the charging should be stopped. |
Fast Charging Charging Time |
30mins |
30%~80%SOC, 25ºC |
Optimum Charging Temperature Range |
15~40ºC |
cell surface temperature |
Max.Charing Temperature Range |
0~60ºC; |
No matter what charging mode the cell is in, once the cell surface temperature exceeds this range, the charging should be stopped. |
Discharging Parameters
| PROJECT | SPECIFICATION | CONDITION |
|---|---|---|
Standard Discharging Mode |
/ |
0.5C CC/CV, cut off 2.0V |
Standard Discharging Current |
0.5C |
/ |
Max. Continuous Discharging Current |
2C |
15~45ºC |
Max.Discharge Pulse Current |
6C(10s) |
15~45ºC |
End-of-Discharge Voltage |
2.0V |
/ |
Max.Discharing Temperature Range |
-30~60ºC; |
No matter what discharging mode the cell is in, once the cell surface temperature exceeds this range, the discharging should be stopped. |
- High Safety
- High Energy Density
- Long Cycle Life
- Excellent Thermal Stability and Safety
- Faster Charging Capabilities
- High Current Discharge Capability
- Environmental Friendliness
- Wide Operating Temperature Range
- Cost-Effectiveness
26700 LiFePO4 Cell is a versatile battery with a wide range of applications, including electric vehicles, energy storage, renewable energy systems, industrial equipment, portable power systems, and more. Its safety, long lifespan, and energy efficiency make it a preferred choice in many industries.
Home Solar Energy Storage
Solar Lightings
Protable Power Bank
Electric Two-Wheeler Vehicle(2W-EV)
Automated Guided Vehicle (AGV)
Golf Cart
- Products Certifications: CCC/GBT31486/GBT38031/GBT31484/GBT31241/BIS/IS16893-2/3/CE/Rosh/Reach /PSE/UL1642/UL1973/UL2580/CB IEC62133/UN38.3/MSDS
- Factory Certifications: 1, Quality Management System: ISO9001 Quality System / IATF16949 Quality System 2,Environmental Health System: ISO14001 & ISO45001 Environmental and Occupational Health Management Systems. 3,Green and Low-Carbon Certification: ISO14064 standards
| Model | Nominal Voltage(V) | Nominal Capacity(mAh) | Charge Current(Max) | Discharge Current (Max) | Indepance (mΩ) | Max Size(mm) | Weight(g) |
|---|---|---|---|---|---|---|---|
18650 |
3.2 |
1100 |
5C |
30C |
≤18 |
18.35*65.3 |
39.5 |
18650 |
3.2 |
1600 |
1C |
3C |
≤40 |
18.35*65.3 |
39.5 |
18650 |
3.2 |
1800 |
1C |
3C |
≤40 |
18.35*65.3 |
41.5 |
18650 |
3.2 |
2200 |
1C |
3C |
≤25 |
18.35*65.3 |
43 |
26650-3000 |
3.2 |
3000 |
3C |
10C |
≤15 |
26.15*65.6 |
81.5 |
26650-3400 |
3.2 |
3400 |
1C |
3C |
≤25 |
26.15*65.6 |
83 |
26650-3600 |
3.2 |
3600 |
1C |
3C |
≤25 |
26.15*65.6 |
84 |
26650-3800 |
3.2 |
3800 |
1C |
3C |
≤20 |
26.15*65.6 |
87.5 |
26650-4000 |
3.2 |
4000 |
1C |
3C |
≤20 |
26.15*65.6 |
88 |
26700-4000 |
3.2 |
4000 |
2C |
3C |
≤20 |
26.6*71.2 |
90 |
26700-5000 |
3.2 |
5000 |
1C |
2C |
≤20 |
26.6*71.2 |
95 |
32700-6000 |
3.2 |
6000 |
1C |
3C |
≤8 |
32.5*70.9 |
145 |
327000-6700 |
3.2 |
6700 |
1C |
1C |
≤8 |
32.5*70.9 |
145 |
32140-15000mAh |
3.2 |
15000 |
1C |
2C |
≤3 |
33.2*140.3 |
273 |
