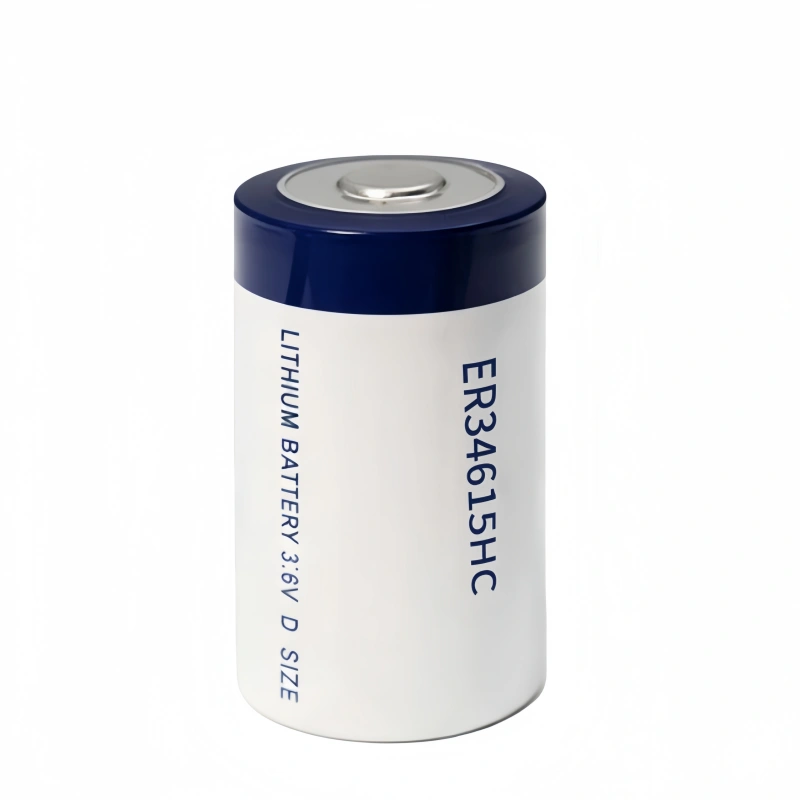

ER34615HC 3.6V 19000mAh Li-SOCl₂ Lithium Thionyl Chloride Battery Cell
Model: ER34615HC
Nominal Voltage: 3.6V
Capacity: 19000mAh
Dimension: Ø34.0 × 61.5mm
Features:
- Li-SOCl₂ Primary Battery
- D cylindrical battery design
- High capacity with enhanced current output
- Ultra-low self-discharge
- Reliable power for remote and industrial applications
Product Specification
| ER34615HC Technical Data | |
|---|---|
| Battery Type | Lithium Thionyl Chloride (Li-SOCl₂) Primary Battery |
| Model | ER34615HC |
| International Size | D |
| Nominal Voltage | 3.6V |
| Nominal Capacity | 19000mAh |
| Termination Voltage | 2.0V |
| Max. Continuous Current | 460mA |
| Max. Pulse Current | 1000mA |
| Operating Temperature | -60℃ to +85℃ |
| Weight | 107g |
| Dimension | Ø34.0 × 61.5mm |
Product Features
- High energy density with stable 3.6V nominal voltage for long-term power supply.
- Enhanced discharge capability with 460mA continuous current output for higher power requirements.
- Ultra-low self-discharge rate for excellent capacity retention during long-term storage.
- Wide operating temperature range from -60℃ to +85℃ for extreme environmental conditions.
- High capacity D-size cylindrical design for extended operating life.
- Reliable power solution for smart meters, industrial systems, and remote monitoring equipment.
Applications
- Smart electricity, water, and gas meters
- Industrial IoT monitoring systems
- Remote monitoring and data acquisition equipment
- Environmental monitoring devices
- Security and tracking systems
- Industrial control equipment
- Backup power supplies for remote applications
Custom Li-SOCl₂ Battery Pack Solutions
In addition to standard Li-SOCl₂ cells, LNC Battery provides customized primary lithium battery pack solutions for industrial and long-term power applications. Based on different application requirements, we can provide flexible battery configurations and reliable assembly solutions for smart meters, IoT devices, industrial equipment, and remote monitoring systems.
- Customized Voltage and Capacity: Battery configurations can be customized according to required voltage, capacity, and application conditions.
- Series and Parallel Configuration: Supports customized battery pack designs to achieve specific voltage and energy requirements.
- Customized Connectors and Wiring: Provides different connector types, cable lengths, and terminal solutions for easy integration.
- Customized Structure and Assembly: Supports battery holders, protective housings, and customized mechanical designs.
- Reliable OEM/ODM Support: Our engineering team helps develop optimized Li-SOCl₂ battery solutions for various industrial applications.
LNC Battery provides OEM and ODM services for customized primary lithium battery solutions. From battery selection and configuration design to final assembly, we work with customers to develop reliable power solutions for long-life and mission-critical applications.
