3.2V 1800mAh 18650 LiFePO4 Cells
Model: LNC18650-1800
Nominal Voltage: 3.2V
Nominal Capacity: 1800mAh
Material: LFP
Cylindrical Rechargeable Lithium-ion Cell LiFePO4-18650- 1.8Ah
| ITEMS | SPECIFICATION | REMARK |
|---|---|---|
Nominal Capacity |
1800mAh |
0.2C, current value of 1800mA at 1C |
Minimum Capacity |
1700mAh |
0.2C |
Nominal Voltage |
3.2V | |
AC Internal Resistance |
≤25mΩ |
AC 1KHz measurement at 25ºC±2ºC |
Standard Charge |
Cut-off Voltage: 3.65V;
Charge current: 0.9A;
Cut-off Current: 18mA |
constant-current charge to 3.65V at 0.5C, constant voltage charge to stop until 0.01C mA. |
Maximum Charge Current |
1.8A | |
Standard Discharge |
Discharge Current: 0.9A;
Cut-off Voltage: 2.5V |
Constant current discharge |
Fast Discharge Current |
1.8A |
This current is the maximum current recommended for the combination of cells, and the specific value should be determined according to the combination structure. The maximum operating current is set at a temperatreu not exceeding 60ºC. |
Max Continuous Discharge Current |
5.4A |
Only for single cell |
Pulse Discharge Current |
10A, 5s | |
Cycle Characteristic |
7000times (50%DOD);
4000times (80%DOD);
2000times(100%DOD); |
The residual capacity is no less than 80% of rated capacity at 1Crate. |
Working Temperature(Including temperature rise) |
Charge: 0~55ºC;
Discharge: -20~60ºC | |
Storage Temperature |
-20℃～55℃: < 1months;
-20℃～45℃: < 3 months;
-20℃～25℃: < 12 months | |

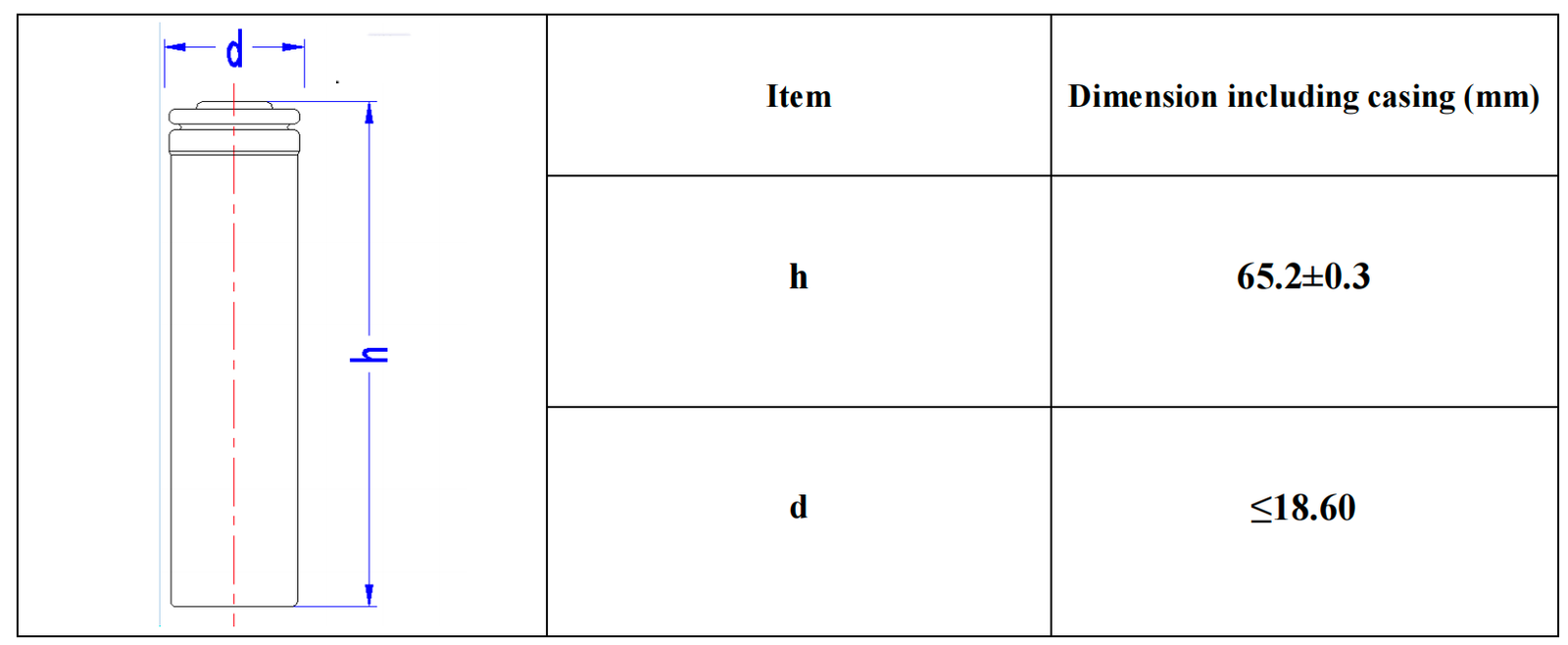

Weight |
Approx41.5g |
including casing |
More, pls contact us to get detailed specifications!
- High Safety
- High Energy Density
- Long Cycle Life
- Excellent Thermal Stability and Safety
- Faster Charging Capabilities
- High Current Discharge Capability
- Environmental Friendliness
- Wide Operating Temperature Range
- Cost-Effectiveness
18650 LiFePO4 Cell is a versatile battery with a wide range of applications, including electric vehicles, energy storage, renewable energy systems, industrial equipment, portable power systems, and more. Its safety, long lifespan, and energy efficiency make it a preferred choice in many industries.
Home Solar Energy Storage
Solar Lightings
Protable Power Bank
Electric Two-Wheeler Vehicle(2W-EV)
Automated Guided Vehicle (AGV)
Golf Cart
- Products Certifications: CCC/BIS/IS16893-2/3/CE/Rohs/Reach/PSE/UL1642/UL1973/ BMSI/CB IEC62133/CB IEC62619/UN38.3/MSDS
- Factory Certifications: 1, Quality Management System: ISO9001 Quality System / IATF16949 Quality System 2,Environmental Health System: ISO14001 & ISO45001 Environmental and Occupational Health Management Systems. 3,Green and Low-Carbon Certification: ISO14064 standards
| Model | Nominal Voltage(V) | Nominal Capacity(mAh) | Charge Current(Max) | Discharge Current (Max) | Indepance (mΩ) | Max Size(mm) | Weight(g) |
|---|---|---|---|---|---|---|---|
18650 |
3.2 |
1100 |
5C |
30C |
≤18 |
18.35*65.3 |
39.5 |
18650 |
3.2 |
1600 |
1C |
3C |
≤40 |
18.35*65.3 |
39.5 |
18650 |
3.2 |
1800 |
1C |
3C |
≤40 |
18.35*65.3 |
41.5 |
18650 |
3.2 |
2200 |
1C |
3C |
≤25 |
18.35*65.3 |
43 |
26650-3000 |
3.2 |
3000 |
3C |
10C |
≤15 |
26.15*65.6 |
81.5 |
26650-3400 |
3.2 |
3400 |
1C |
3C |
≤25 |
26.15*65.6 |
83 |
26650-3600 |
3.2 |
3600 |
1C |
3C |
≤25 |
26.15*65.6 |
84 |
26650-3800 |
3.2 |
3800 |
1C |
3C |
≤20 |
26.15*65.6 |
87.5 |
26650-4000 |
3.2 |
4000 |
1C |
3C |
≤20 |
26.15*65.6 |
88 |
26700-4000 |
3.2 |
4000 |
2C |
3C |
≤20 |
26.6*71.2 |
90 |
26700-5000 |
3.2 |
5000 |
1C |
2C |
≤20 |
26.6*71.2 |
95 |
32700-6000 |
3.2 |
6000 |
1C |
3C |
≤8 |
32.5*70.9 |
145 |
327000-6700 |
3.2 |
6700 |
1C |
1C |
≤8 |
32.5*70.9 |
145 |
32140-15000mAh |
3.2 |
15000 |
1C |
2C |
≤3 |
33.2*140.3 |
273 |
