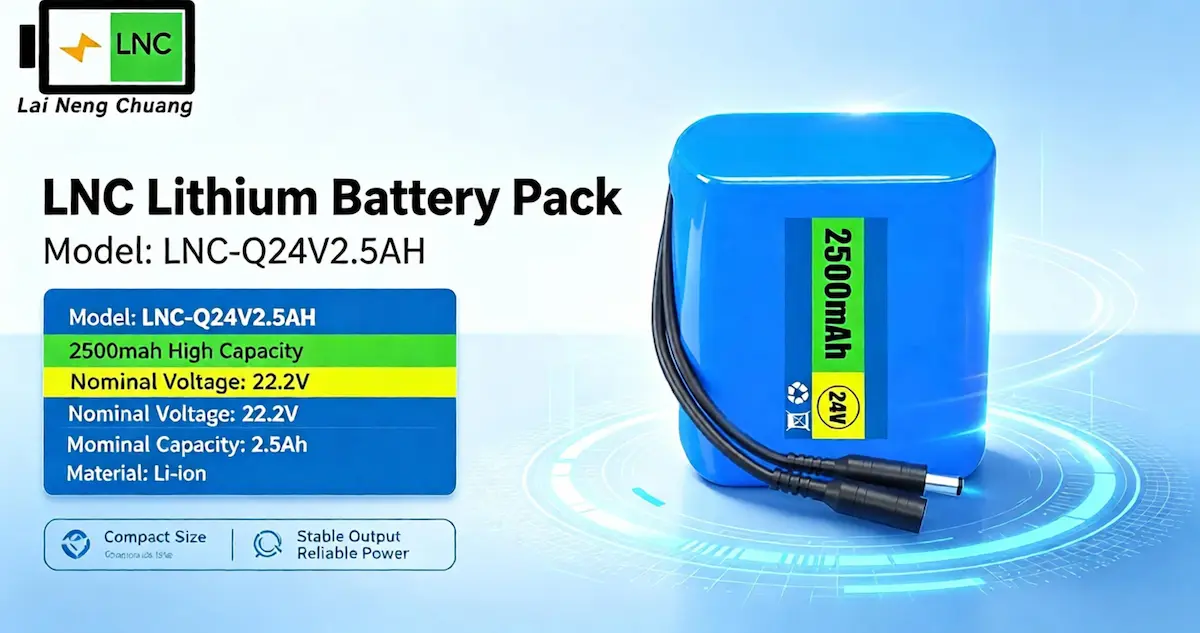

The LNC-Q24V2.5AH is a compact 24V 2.5Ah lithium-ion battery pack designed for portable power equipment, energy storage systems, industrial devices, robotics, and other applications that require reliable rechargeable power in a compact package. Built with ICR18650 lithium-ion cells in a 6S1P configuration, this battery pack provides a nominal voltage of 22.2V and a rated energy of 55.5Wh.
With an integrated battery management system (BMS), the pack is designed to provide protection against over-charge, over-discharge, over-current, short circuit, and temperature-related risks. Its compact 55 × 69 × 40 mm enclosure makes it suitable for equipment where installation space is limited.
For complete product information, specifications, and customization options, visit the 24V 2.5Ah 6S1P Li-ion Rechargeable Battery Pack .
24V 2.5Ah Li-ion Battery Pack Technical Specifications
The LNC-Q24V2.5AH uses a 6S1P 18650 lithium-ion cell configuration to provide stable rechargeable power. Its 22.2V nominal voltage and 25.2V charging voltage make it suitable for equipment designed around a 24V-class battery system.
| Item | Specification |
|---|---|
| Model | LNC-Q24V2.5AH |
| Battery Type | Li-ion |
| Nominal Voltage | 22.2V |
| Nominal Capacity | 2.5Ah |
| Rated Energy | 55.5Wh |
| Charging Voltage | 25.2V |
| Operating Voltage Range | 16.8V – 25.2V |
| Standard Charging Current | 0.2C |
| Maximum Charging Current | 1C |
| Standard Discharge Current | 0.2C |
| Max. Continuous Discharge Current | 1C |
| Cutoff Discharge Voltage | 16.8V |
| Storage Temperature | -20°C to 45°C |
| Charging Temperature | 0°C to 45°C |
| Discharge Temperature | -20°C to 60°C |
| Connector | DC |
| External Dimensions | 55 × 69 × 40 mm |
| Cell Configuration | ICR18650-2.5Ah-6S1P |
Key Features of the 24V Rechargeable Lithium-ion Battery
Compact 6S1P Battery Configuration
The 6S1P configuration combines six 18650 lithium-ion cells in series to achieve a nominal voltage of 22.2V. This compact configuration helps provide a practical balance between voltage output, battery size, and energy capacity for portable and space-constrained equipment.
55.5Wh Rated Energy
With a nominal capacity of 2.5Ah and rated energy of 55.5Wh, this rechargeable lithium-ion battery pack is designed for applications requiring a compact source of stored electrical energy. The battery can be integrated into portable devices and equipment where a dedicated rechargeable power source is required.
Stable Power Delivery
The optimized cell configuration is designed to provide consistent electrical output during operation. Combined with appropriate BMS protection, the battery pack supports reliable power delivery for equipment that operates within its specified voltage and current range.
Integrated Battery Protection
The battery management system helps monitor and protect the battery during charging and discharging. Depending on the final battery configuration, protection functions can address conditions such as over-charge, over-discharge, over-current, short circuit, and abnormal temperature.
Flexible DC Connector Options
The standard configuration uses a DC connector, while connector specifications can be adapted for different equipment requirements. Connector type, cable configuration, and related electrical interfaces can be discussed during the customization process.
Space-Saving Battery Design
Measuring approximately 55 × 69 × 40 mm, this 24V lithium-ion battery pack is designed for applications where available installation space is limited. The compact dimensions make it suitable for portable equipment, control systems, robotics, and other battery-powered devices.
Applications of the 24V 2.5Ah Li-ion Battery Pack
This 24V rechargeable battery pack can be used in a variety of portable and industrial applications where compact dimensions, rechargeable energy storage, and stable power output are important.
Portable Power Equipment
The compact battery format makes the pack suitable for portable electronic equipment, inspection devices, mobile instruments, and other battery-powered products that require a rechargeable 24V-class power source.
Industrial Equipment and Control Systems
The battery pack can be integrated into selected industrial equipment, automation devices, backup power systems, and control systems that operate within the specified voltage and current range.
AGV and Mobile Robotics
Rechargeable lithium-ion battery technology is widely used in mobile equipment. This 6S1P battery configuration can be considered for AGV-related equipment, mobile robots, robotic devices, and compact intelligent systems where battery size and reliable energy supply are important design factors.
Energy Storage and Portable Devices
With 55.5Wh of rated energy, the battery pack can serve as a compact energy storage solution for selected portable devices and low-to-medium power electronic applications.
Medical and Healthcare Equipment
The battery can be considered for compatible medical, healthcare, and monitoring equipment requiring a rechargeable battery source. Final battery selection should be based on the equipment’s electrical, mechanical, environmental, and safety requirements.
Customized 24V Lithium-ion Battery Pack Solutions
Standard battery packs do not always match the mechanical and electrical requirements of a specific product. LNC provides customized 24V lithium-ion battery pack solutions for different equipment designs and application requirements.
Based on your project specifications, the battery configuration can be evaluated and customized in areas such as capacity, dimensions, connector type, wiring, current requirements, enclosure design, and BMS functions.
- Custom voltage and battery capacity
- Customized battery dimensions and packaging
- Different connector and cable configurations
- Customized BMS protection functions
- Battery packs for OEM equipment
- Prototype and sample development support
- Application-specific lithium-ion battery design
If you are evaluating this specific configuration, you can view the LNC-Q24V2.5AH 24V 2.5Ah 6S1P Li-ion battery pack and contact LNC with your equipment specifications.
Why Choose LNC for Li-ion Battery Pack Development?
LNC specializes in advanced rechargeable battery technologies and customized battery pack development. Its product expertise covers lithium-ion, LiFePO4, lithium-polymer, LiMnO2, LiSOCl2, and sodium-ion battery technologies.
For OEM and application-specific projects, battery solutions can be developed around the actual electrical and mechanical requirements of the end product. This approach allows customers to evaluate battery voltage, capacity, current output, dimensions, connector configuration, and protection requirements together rather than selecting a standard battery solely by voltage or capacity.
LNC’s battery engineering capabilities support different stages of product development, from battery configuration selection and sample development to customized battery pack production. Quality control and technical evaluation are incorporated into the battery development process to support consistent product performance.
Request a Customized 24V Li-ion Battery Pack
Looking for a 24V lithium-ion battery pack manufacturer for a new product or existing equipment? The LNC-Q24V2.5AH is one available 6S1P configuration for applications requiring a compact rechargeable power source.
When requesting a customized battery solution, it is helpful to provide the required voltage, capacity, maximum charging and discharge current, available installation space, connector requirements, operating temperature, and application type. LNC engineers can then evaluate the battery configuration according to the actual equipment requirements.
- 24V-class lithium-ion battery pack solutions
- Custom capacity and cell configuration
- OEM and customized battery pack support
- Custom BMS and protection requirements
- Flexible connector and cable options
- Battery solutions for industrial and portable equipment
Explore the product: 24V 2.5Ah 6S1P Li-ion Rechargeable Battery Pack
Frequently Asked Questions About 24V 2.5Ah Li-ion Battery Packs
1. What is the nominal voltage of this 24V lithium-ion battery pack?
The LNC-Q24V2.5AH has a nominal voltage of 22.2V and a charging voltage of 25.2V. It uses an ICR18650-2.5Ah 6S1P cell configuration and is commonly described as a 24V-class lithium-ion battery pack.
2. How much energy does the 24V 2.5Ah battery pack provide?
The battery pack has a rated energy of 55.5Wh, based on its 22.2V nominal voltage and 2.5Ah nominal capacity.
3. Can the 24V 2.5Ah Li-ion battery pack be customized?
Yes. LNC can evaluate customized battery pack requirements including capacity, dimensions, connectors, wiring, BMS functions, and other electrical or mechanical specifications based on the application.
4. What applications can use this 6S1P lithium-ion battery pack?
Potential applications include portable power equipment, industrial devices, control systems, mobile robotics, AGV-related equipment, inspection instruments, and compatible energy storage or electronic devices. The battery should be selected according to the equipment’s specific electrical and environmental requirements.
5. How can I request a customized lithium-ion battery solution?
Provide your required voltage, capacity, dimensions, charging and discharge current, connector type, operating environment, and application details. LNC can use these specifications to evaluate a suitable battery configuration and customization plan.
