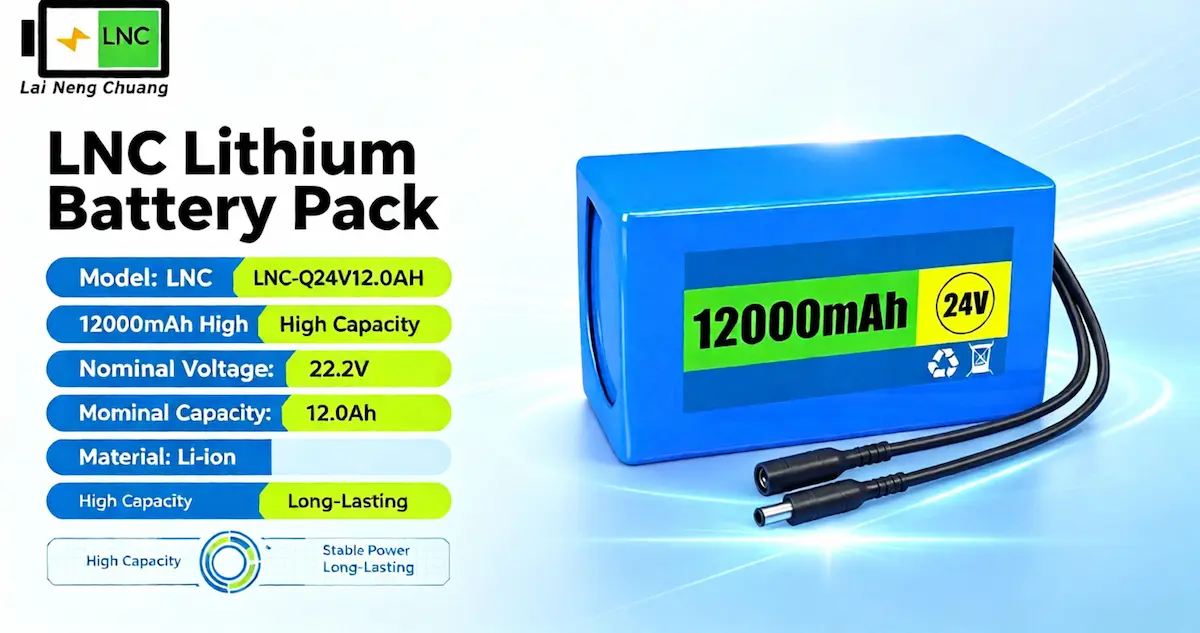

The LNC-Q24V12.0AH is a high-capacity 22.2V 12Ah lithium-ion rechargeable battery pack designed for power storage, industrial equipment, robotics, portable devices, and other customized energy applications. Built with an ICR18650 6S4P cell configuration, this battery pack provides a practical balance of energy capacity, compact size, stable output, and reliable operating performance.
With a rated energy of 266.4Wh, the 22.2V lithium-ion battery pack is suitable for equipment that requires dependable rechargeable power in a relatively compact battery enclosure. An integrated BMS helps provide essential protection during charging and discharging, while the battery structure can be adapted to different equipment and system requirements.
For customers looking for a similar battery solution specifically designed for larger power storage requirements, you can also explore the 24V 12Ah 6S4P lithium-ion rechargeable battery for large-scale power storage.
22.2V 12Ah Lithium-ion Battery Pack Specifications
The LNC-Q24V12.0AH uses a 6S4P lithium-ion cell arrangement to achieve a nominal voltage of 22.2V and a nominal capacity of 12.0Ah. Its 266.4Wh rated energy makes it suitable for applications where reliable runtime and rechargeable energy storage are important.
| Specification Item | Details |
|---|---|
| Model | LNC-Q24V12.0AH |
| Battery Type | Li-ion Rechargeable Battery |
| Nominal Voltage | 22.2V |
| Nominal Capacity | 12.0Ah |
| Rated Energy | 266.4Wh |
| Charging Voltage | 25.2V |
| Operating Voltage Range | 16.8V – 25.2V |
| Standard Charging Current | 0.2C |
| Maximum Charging Current | 10A |
| Standard Discharge Current | 0.2C |
| Maximum Continuous Discharge Current | 10A |
| Cutoff Discharge Voltage | 16.8V |
| Storage Temperature | -20°C to 45°C |
| Charging Temperature | 0°C to 45°C |
| Discharge Temperature | -20°C to 60°C |
| Connector | DC |
| External Dimensions | 110 × 76 × 67 mm |
| Cell Configuration | ICR18650-12.0Ah-6S4P |
Key Features of the 22.2V 12Ah Li-ion Battery Pack
High-Capacity Rechargeable Power
With a nominal capacity of 12Ah and rated energy of 266.4Wh, this rechargeable lithium-ion battery pack is designed to provide dependable power for equipment that needs extended operating time. The 6S4P configuration combines multiple 18650 cells to provide the required voltage and capacity in a compact battery pack.
Stable Voltage and Power Delivery
The 22.2V nominal output is suitable for a range of electronic, industrial, and mobile power systems. The optimized cell configuration supports stable discharge performance, helping connected equipment receive consistent power during normal operation.
Integrated Battery Management System
A battery management system (BMS) can monitor and manage important battery operating conditions. Depending on the configured solution, protection functions can include overcharge, over-discharge, over-current, short-circuit, and temperature protection.
Compact 18650 Cell Configuration
The use of cylindrical 18650 lithium-ion cells allows the battery pack to maintain a relatively compact form factor while delivering useful energy capacity. The standard dimensions of this model are approximately 110 × 76 × 67 mm, making it suitable for equipment with limited installation space.
Rechargeable and Designed for Repeated Use
As a rechargeable lithium-ion battery solution, the pack can be integrated into equipment designed for repeated charge and discharge cycles. Proper charging, operating, and storage conditions help support consistent battery performance over its service life.
Flexible Battery Pack Design
Battery requirements vary from one application to another. Voltage, capacity, dimensions, connector type, discharge capability, wiring configuration, and BMS functions can be adapted according to the requirements of the target device or power system.
Applications for 22.2V Lithium-ion Battery Packs
The 22.2V 12Ah rechargeable battery pack can be used in a variety of applications where compact energy storage, rechargeable operation, and stable power output are required. Typical applications include industrial equipment, robotics, portable equipment, inspection systems, and customized power solutions.
Industrial Equipment and Automation Systems
This lithium-ion battery pack can be integrated into industrial equipment, automation devices, control systems, and other electrically powered machinery that requires a rechargeable battery source.
AGV and Mobile Robotics
AGVs, autonomous mobile robots, service robots, and other mobile platforms require batteries that can provide dependable power without adding unnecessary bulk. The 6S4P lithium-ion configuration offers a practical solution for selected robotic and mobile equipment.
Portable Power Equipment
The compact battery format makes the pack suitable for portable electronic equipment, inspection instruments, monitoring devices, and other mobile applications where an integrated rechargeable power source is needed.
Medical and Healthcare Equipment
Rechargeable lithium-ion battery packs can be designed for selected medical and healthcare equipment requiring portable or backup power. Battery specifications should be matched carefully with the electrical and safety requirements of the final device.
Customized Energy Storage Systems
The battery can also serve as a power source for customized energy storage equipment and electronic systems. For projects requiring different voltage or capacity combinations, the cell configuration and battery pack design can be adjusted to meet specific system requirements.
Customized 24V-class Li-ion Battery Pack Solutions
LNC provides customized lithium-ion battery pack solutions for OEM and project-based applications. Although this model has a nominal voltage of 22.2V, it is commonly considered a 24V-class lithium-ion battery pack because its fully charged voltage reaches 25.2V.
For equipment manufacturers and system integrators, battery specifications can be developed around the actual electrical and mechanical requirements of the application. Custom options may include:
- Battery voltage and capacity
- Cell configuration
- Battery pack dimensions
- Connector and cable configuration
- Charging and discharge current
- BMS protection functions
- Battery communication functions when required
- Housing and installation structure
- OEM and custom battery pack design
This approach allows the battery to be developed around the available installation space, required runtime, current demand, charging method, and operating environment of the finished equipment.
Why Choose LNC for Custom Lithium-ion Battery Packs?
LNC specializes in advanced rechargeable battery technologies and customized battery pack development for different equipment and energy applications. Its product expertise covers lithium-ion, LiFePO4, lithium-polymer, LiMnO2, LiSOCl2, and sodium-ion battery technologies.
For customers developing new equipment or looking for an alternative battery configuration, LNC can support the battery selection and customization process based on voltage, capacity, current requirements, dimensions, operating conditions, and application needs.
The focus is on developing battery solutions that balance electrical performance, physical dimensions, protection requirements, and application-specific operating conditions.
Request a Customized 22.2V / 24V Li-ion Battery Solution
If you need a 22.2V 12Ah lithium-ion battery pack for industrial equipment, robotics, portable devices, power storage, or another customized application, the LNC-Q24V12.0AH provides a practical starting configuration.
For a customized battery project, provide key requirements such as target voltage, capacity, dimensions, maximum current, connector type, charging method, expected runtime, and application environment. LNC can then evaluate the requirements and develop a suitable rechargeable lithium-ion battery pack configuration.
- Custom Voltage and Capacity
- Custom Battery Pack Dimensions
- High-Current Battery Design
- OEM and ODM Battery Pack Support
- Customized BMS Configuration
- Industrial and Portable Power Applications
Explore the related product: 24V 12Ah 6S4P Lithium-ion Rechargeable Battery for Large-scale Power Storage
Frequently Asked Questions About 22.2V 12Ah Li-ion Battery Packs
1. Is a 22.2V lithium-ion battery the same as a 24V battery?
A 22.2V lithium-ion battery pack is generally considered a 24V-class battery. A 6-series lithium-ion configuration has a nominal voltage of 22.2V and a fully charged voltage of 25.2V, which is why it is often described as a 24V lithium-ion battery pack.
2. What does 6S4P mean for this lithium-ion battery pack?
6S4P describes the internal cell configuration. “6S” means six lithium-ion cell groups are connected in series to establish the voltage, while “4P” means four cells or cell groups are connected in parallel to increase capacity and current capability.
3. What is the energy capacity of the 22.2V 12Ah battery?
The nominal energy of this battery pack is 266.4Wh, calculated from 22.2V × 12Ah. Actual usable energy can vary depending on the equipment, discharge conditions, battery protection settings, temperature, and other operating factors.
4. Can the 22.2V 12Ah lithium-ion battery pack be customized?
Yes. Battery pack specifications can be customized for OEM and project applications. Depending on the requirements, customization may include capacity, dimensions, connectors, current output, cell configuration, housing, and BMS functions.
5. What applications can use this 22.2V 12Ah rechargeable battery?
Potential applications include industrial equipment, AGVs, mobile robots, portable power equipment, inspection devices, selected medical equipment, and customized energy storage systems. The final battery specification should always be matched to the electrical and safety requirements of the application.
