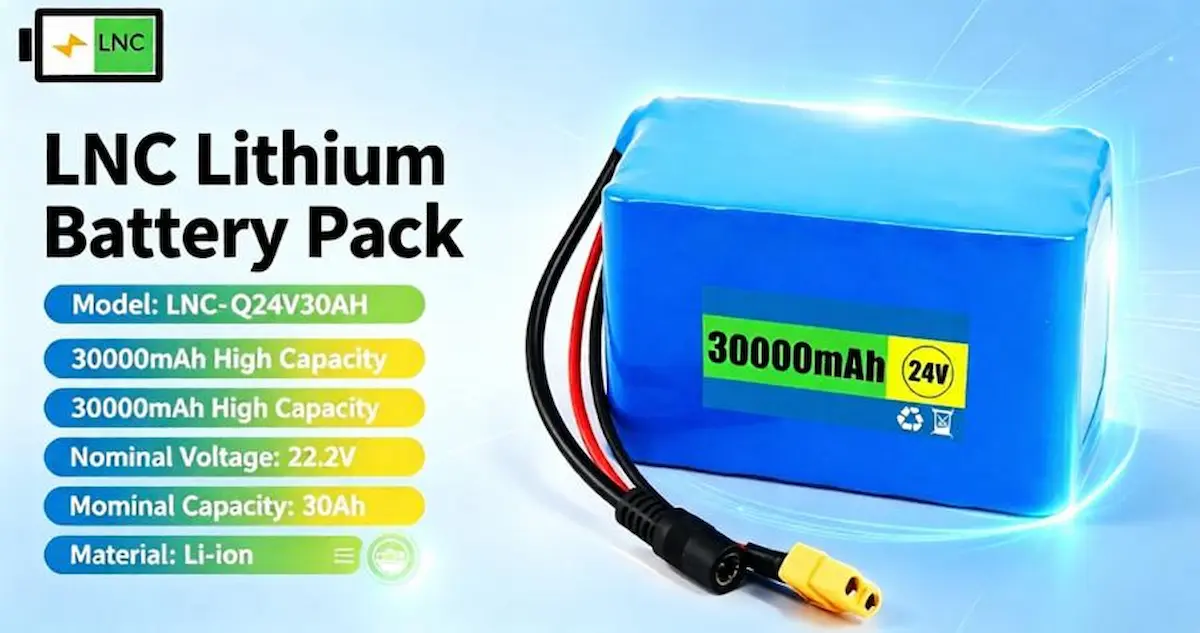

The 24V 30Ah 6S10P 18650 Li-ion battery pack is a high-capacity rechargeable power solution designed for equipment and systems that require dependable energy output, compact packaging, and flexible battery configuration.
Built with 18650 lithium-ion cells in a 6S10P configuration, this battery pack delivers a nominal voltage of 22.2V and a rated energy of 666Wh. An integrated Battery Management System (BMS) provides essential protection against overcharge, over-discharge, over-current, short circuit, and temperature-related risks.
This 24V 30Ah lithium-ion battery pack can be customized according to application requirements, including dimensions, connectors, current output, wiring configuration, and BMS functions.
Model: LNC-Q24V30AH
Battery Type: Li-ion
Nominal Voltage: 22.2V
Nominal Capacity: 30Ah
Rated Energy: 666Wh
Cell Configuration: 6S10P
For complete product information, specifications, and customization options, visit the 24V 30Ah 6S10P 18650 Li-ion Battery Pack product page.
24V 30Ah Lithium-ion Battery Pack Specifications
The following specifications describe the standard configuration of the LNC-Q24V30AH battery pack. Electrical and mechanical parameters can be customized to meet specific equipment and system requirements.
| Specification | Details |
|---|---|
| Model | LNC-Q24V30AH |
| Battery Type | Li-ion |
| Nominal Voltage | 22.2V |
| Nominal Capacity | 30Ah |
| Rated Energy | 666Wh |
| Charging Voltage | 25.2V |
| Operating Voltage Range | 16.8V–25.2V |
| Standard Charging Current | 0.2C |
| Maximum Charging Current | 1C |
| Standard Discharge Current | 0.2C |
| Max. Continuous Discharge Current | 1C |
| Cutoff Discharge Voltage | 16.8V |
| Storage Temperature | -20°C to 45°C |
| Charging Temperature | 0°C to 45°C |
| Discharge Temperature | -20°C to 60°C |
| Connector | Customizable |
| External Dimensions | Customizable |
| Cell Configuration | 6S10P |
| Cell Type | 18650 Li-ion |
Key Advantages of the 24V 30Ah 18650 Li-ion Battery Pack
A reliable lithium-ion battery pack needs to provide more than capacity alone. For industrial and commercial applications, voltage stability, energy density, protection, thermal performance, and mechanical integration are all important factors.
The 24V 30Ah battery pack combines a compact 18650 cell format with a high-capacity 6S10P configuration, providing a practical rechargeable power solution for equipment that requires dependable energy output and flexible battery integration.
High Energy Capacity in a Compact Format
With a nominal capacity of 30Ah and rated energy of 666Wh, this battery pack is designed for applications that require extended operating time.
The 18650 cell format also provides flexibility when developing battery packs with different dimensions, configurations, and installation requirements.
Stable Lithium-ion Power Output
The optimized 6S10P cell configuration is designed to provide consistent power delivery during operation. The series configuration establishes the required voltage level, while the parallel cell groups contribute to capacity and current capability.
This makes the battery suitable for equipment where stable and predictable rechargeable power is important.
Integrated BMS Protection
The battery pack can be equipped with a Battery Management System to monitor and protect the battery during charging and discharging.
Typical BMS protection functions include:
- Overcharge protection
- Over-discharge protection
- Over-current protection
- Short-circuit protection
- Temperature protection
- Cell voltage monitoring
The BMS configuration can also be customized depending on the electrical and functional requirements of the application.
Flexible Battery Pack Configuration
Different applications have different space, current, connection, and operating requirements. For this reason, the 24V lithium-ion battery pack can be customized beyond the standard configuration.
Depending on the project, customization may include:
- Battery voltage
- Battery capacity
- Pack dimensions
- Connector type
- Cable length
- Discharge current
- Charging current
- BMS functions
- Communication functions
- Battery housing
- Cell configuration
Rechargeable Design for Long-Term Applications
Lithium-ion technology provides a rechargeable energy solution for equipment that requires repeated charge and discharge cycles.
When the battery pack is properly designed and operated within its specified electrical, temperature, and charging limits, it can provide dependable power for a wide range of long-term applications.
6S10P 18650 Battery Configuration Explained
The 6S10P configuration consists of six groups of cells connected in series, with ten cells connected in parallel within each group.
The 6S configuration determines the battery pack’s voltage, while the 10P configuration contributes to its overall capacity and current capability.
This configuration is suitable for applications that require a higher-voltage lithium-ion battery pack while maintaining a relatively compact form factor.
For projects requiring a different voltage or capacity, LNC can develop alternative cell configurations based on the electrical specifications and mechanical requirements of the equipment.
Applications of the 24V 30Ah Li-ion Battery Pack
The combination of high energy capacity, rechargeable performance, and customizable design makes this battery pack suitable for a wide range of commercial, industrial, and mobile applications.
AGV and Mobile Robotics
AGVs and mobile robots require compact rechargeable batteries that can provide reliable energy during repeated operation.
The 24V 30Ah lithium-ion battery pack can be configured for mobile robotic platforms, autonomous equipment, material-handling systems, and other battery-powered machinery.
Industrial Equipment
This battery pack can be used as a power source for industrial equipment, automation systems, monitoring devices, and mobile machinery where dependable rechargeable power is required.
Portable Power Equipment
The compact 18650 cell format makes this battery suitable for portable and semi-portable equipment.
Potential applications include inspection equipment, mobile instruments, field equipment, and customized portable power systems.
Medical and Healthcare Equipment
For selected medical and healthcare equipment requiring rechargeable battery power, a customized lithium-ion battery pack can provide stable energy within a carefully controlled electrical and thermal operating range.
Battery specifications should always be matched to the equipment manufacturer’s requirements before deployment.
Robotics and Intelligent Equipment
Robotics applications often require a balance between energy capacity, weight, available installation space, and discharge performance.
A customized 24V battery pack can be engineered around the electrical, mechanical, and operational requirements of robotic and intelligent equipment.
Custom 24V Lithium-ion Battery Pack Solutions
Standard battery packs do not always fit the requirements of specialized equipment. LNC provides custom lithium-ion battery pack solutions for customers who need specific electrical, mechanical, and functional configurations.
Our engineering team can develop a battery pack based on your project requirements, including:
- Required voltage and capacity
- Maximum continuous discharge current
- Peak current requirements
- Charging specifications
- Available installation space
- Connector requirements
- Cable and wiring configuration
- BMS protection requirements
- Communication requirements
- Operating temperature
- Application environment
Whether you need a modified 24V 30Ah battery pack or a completely customized lithium-ion battery system, the battery configuration can be developed around the requirements of your equipment.
OEM and ODM Lithium-ion Battery Pack Support
LNC supports OEM and ODM battery pack projects for different commercial and industrial applications.
From cell selection and pack configuration to BMS integration and mechanical design, the battery development process can be adapted to the technical requirements of each project.
For customers with existing battery specifications, drawings, samples, or equipment requirements, these details can be used as the basis for battery pack development.
For new projects, LNC can help evaluate the required voltage, capacity, current, dimensions, and protection functions to determine an appropriate battery configuration.
Request a Customized 24V 30Ah Battery Pack
Looking for a 24V 30Ah rechargeable lithium-ion battery pack for your equipment or project?
Send your battery requirements to LNC, including:
- Required voltage
- Required capacity
- Continuous and peak current
- Charging requirements
- Battery dimensions
- Connector type
- Operating environment
- Application information
- Estimated order quantity
LNC can evaluate your requirements and provide a suitable custom lithium-ion battery pack solution for your application.
Key Customization Capabilities
- Custom Voltage and Capacity
- 18650 Li-ion Battery Pack Design
- Custom Current Output
- Custom Dimensions and Connectors
- BMS Protection Integration
- OEM and ODM Battery Pack Support
- Industrial and Robotic Applications
- Customized Battery Engineering
LNC Lithium-ion Battery Technology
LNC Batteries specializes in rechargeable and primary battery technologies for different application requirements.
Our battery solutions cover Li-ion, LiFePO4, Li-polymer, LiMnO2, LiSOCl2, and sodium-ion battery technologies.
Different battery chemistries provide different characteristics in terms of energy density, safety, operating temperature, cycle performance, voltage, and application suitability. LNC can therefore recommend and develop battery solutions according to the actual technical requirements of each project.
For this specific product, the 24V 30Ah 6S10P 18650 Li-ion battery pack provides a high-capacity rechargeable solution for equipment requiring approximately 22.2V nominal voltage and 666Wh rated energy.
Frequently Asked Questions About 24V 30Ah Li-ion Battery Packs
1. What is the nominal voltage of this 24V battery pack?
The nominal voltage of this lithium-ion battery pack is 22.2V, while the charging voltage is 25.2V. The pack uses a 6S lithium-ion cell configuration.
2. How much energy does the 24V 30Ah battery pack provide?
The rated energy is 666Wh, based on the nominal voltage of 22.2V and nominal capacity of 30Ah.
3. Can the 24V 30Ah 18650 battery pack be customized?
Yes. LNC can customize the battery pack according to project requirements, including capacity, dimensions, connectors, current output, wiring configuration, and BMS functions.
4. What applications can use this 18650 lithium-ion battery pack?
The battery can be considered for AGVs, mobile robots, industrial equipment, portable power equipment, inspection devices, intelligent machinery, and other customized battery-powered systems.
5. How can I request a customized battery solution?
Provide your required voltage, capacity, dimensions, discharge current, charging requirements, connector specifications, application, and other available technical information. LNC can evaluate your requirements and develop a suitable battery pack configuration.
Looking for a customized 24V lithium-ion battery pack? View the 24V 30Ah 6S10P 18650 Li-ion Battery Pack or contact LNC Batteries for a customized battery solution.
