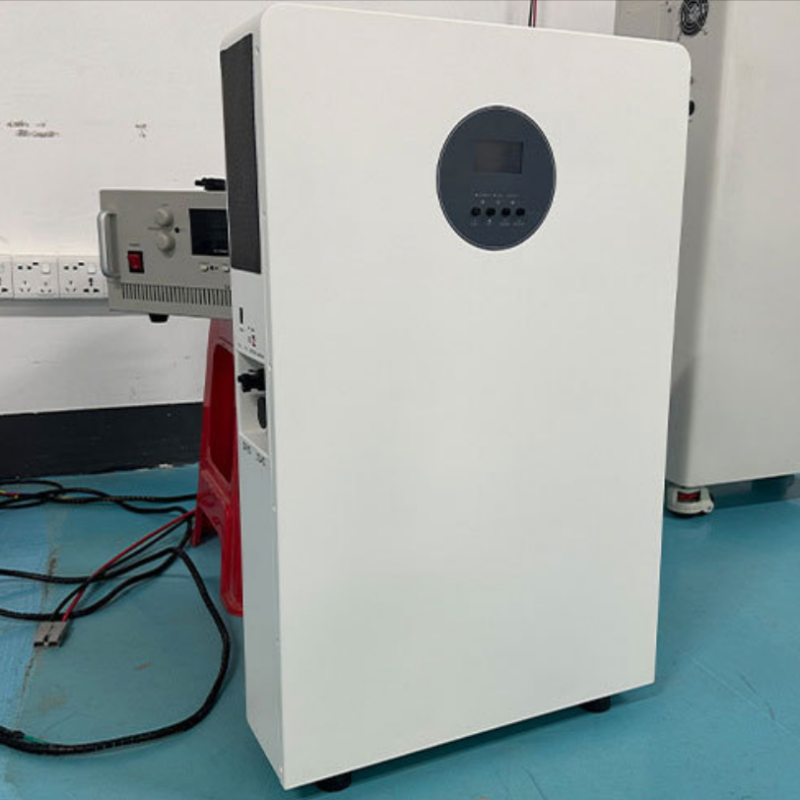

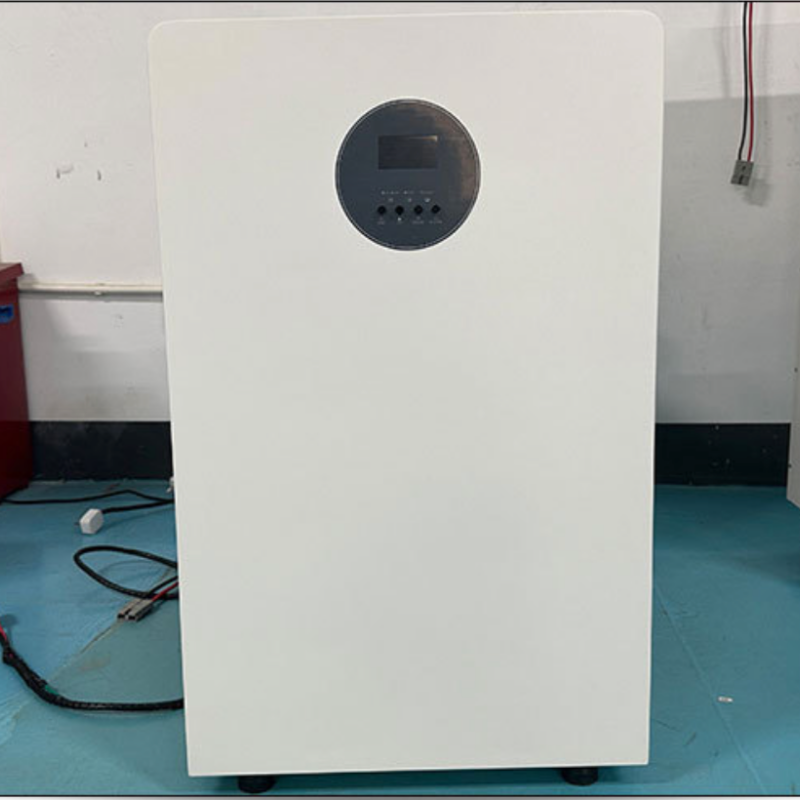

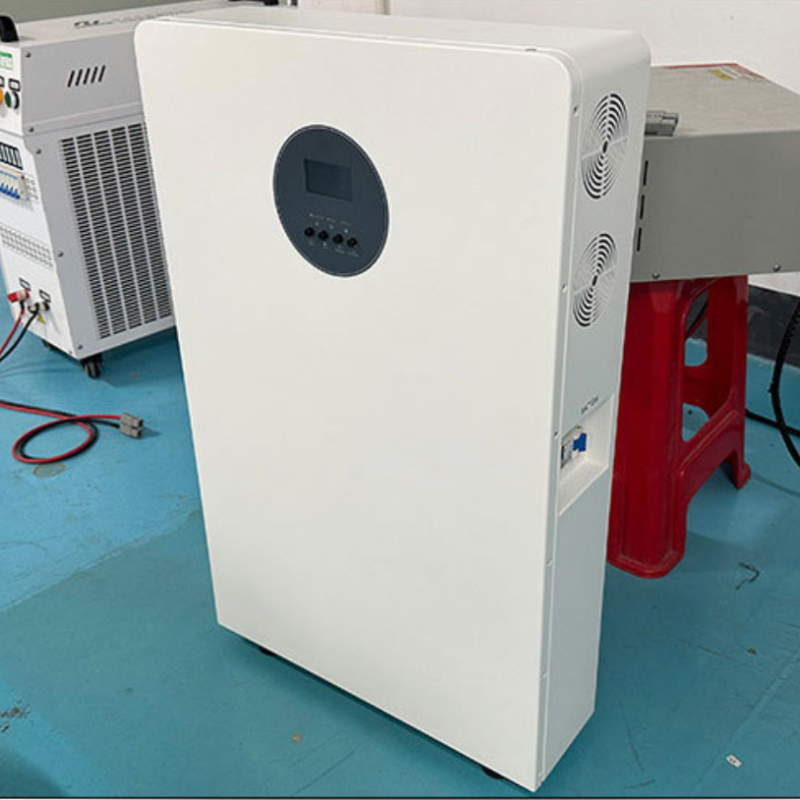

5kW 5kWh LiFePO4 All-in-One Solar Home Battery Storage System
Key Specifications:
⚡ Rated Power: 5kW
🔋 Battery Capacity: 5.12kWh
🔋 Battery Voltage: 51.2V
🔋 Battery Chemistry: LiFePO4
🔄 Cycle Life (cell): ≥5000 Cycles
Product Specification
| Item | Specification |
|---|---|
| Product Type | All-in-One Home Energy Storage System |
| Application | Residential Solar Energy Storage / Home Backup Power |
| Battery Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Battery Energy | 5.12kWh |
| Rated Voltage | 51.2V |
| Rated Capacity | 100Ah |
| Battery Configuration | 16S1P |
| Inverter Rated Power | 5kW |
| Charging Voltage | 58.4V |
| Discharge Cut-off Voltage | 40V |
| Maximum Continuous Charging Current | 100A |
| Maximum Continuous Discharging Current | 100A |
| Cycle Life （Cell） | ≥5000 cycles (25℃, 0.5C/0.5C, 80% capacity retention) |
| Charging Temperature | 0~55℃ |
| Discharging Temperature | -20~65℃ |
| Communication | CAN / RS232 |

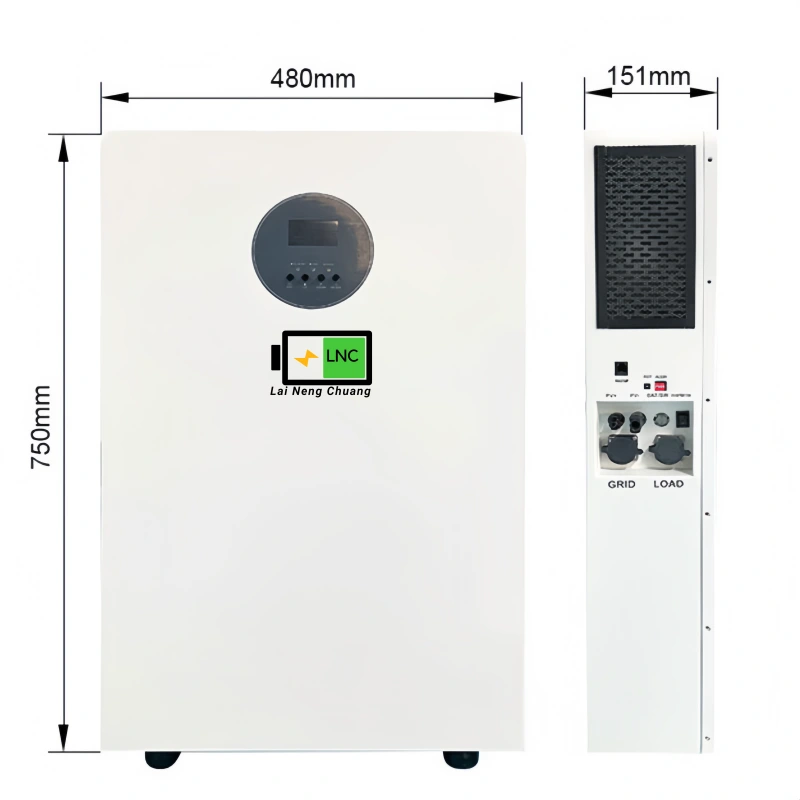

| Dimension | 750 × 480 × 151mm |
| Weight | Approx. 57kg |

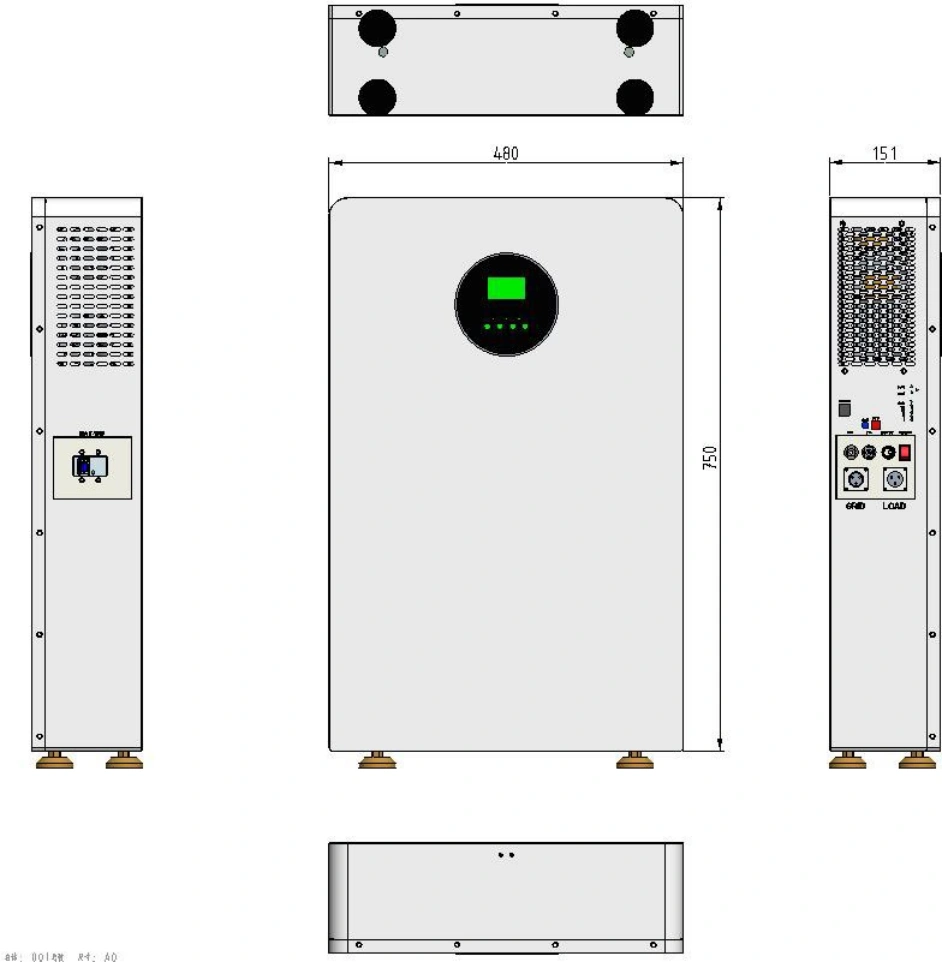

Product Size Diagram

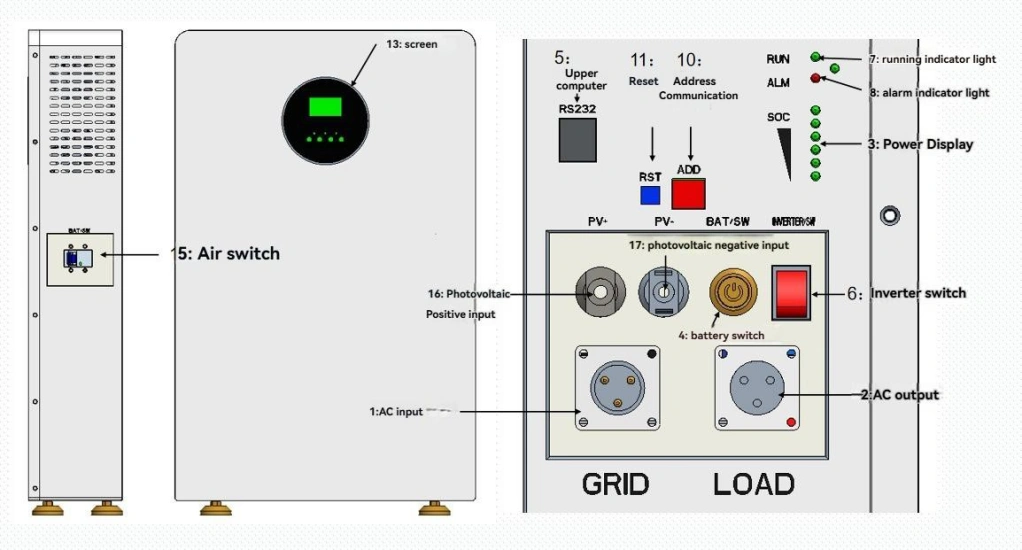

Battery Case Structure & Interface Description
| No. | Description | Silk-screen | Remarks |
|---|---|---|---|
| 1 | AC Input | GRID | AC input connector |
| 2 | AC Output | LOAD | AC output connector |
| 3 | Battery Status Display | SOC | Displays remaining battery capacity |
| 4 | Battery Switch | BAT/SW | Start/stop battery power |
| 5 | Upper Computer Communication | RS232 | Communication interface |
| 6 | Inverter Switch | INVERTER/SW | Start/stop inverter power supply |
| 7 | Run Indicator Light | RUN | Operating status indicator |
| 8 | Alarm Indicator Light | ALM | Fault alarm indicator |
| 9 | Ground Point | Ground Symbol | Connection point for protective grounding wire |
| 10 | Address Setting | ADD | Parallel machine address setting |
| 11 | Reset Button | RST | System forced reset when battery is abnormal |
| 12 | Dry Contact | DRY | Reserved interface |
| 13 | Display Screen | — | System information display |
| 14 | CAN Communication | CAN | Communication with inverter |
| 15 | Air Switch | — | Circuit breaker protection |
| 16 | PV Input Positive | PV+ | Photovoltaic input connector |
| 17 | PV Input Negative | PV- | Photovoltaic input connector |
Product Advantages
1. All-in-One Integrated Design
The battery system and hybrid inverter are integrated into one compact unit, providing a complete home energy storage solution with simplified installation and reduced system complexity.
2. Safe & Reliable LiFePO4 Battery Technology
Built with lithium iron phosphate (LiFePO4) battery cells, the system offers excellent thermal stability, high safety performance and reliable operation for residential energy storage applications.
3. Long Cycle Life Performance
With a cycle life of more than 5000 cycles under standard test conditions, the system provides long-term energy storage performance and helps reduce replacement costs.
4. Powerful Home Backup Solution
Supporting up to 5kW inverter output, this energy storage system provides stable backup power for household appliances and improves energy independence.
5. Intelligent Energy Management
Equipped with SOC display and CAN/RS232 communication interfaces, the system enables efficient monitoring and communication with compatible energy management systems.
6. Easy Installation & Operation
The pre-integrated design reduces wiring requirements and installation time, making it suitable for residential solar energy storage projects.
Applications
Residential Solar Energy Storage
Stores excess solar energy generated during the day and provides power for household electricity usage, improving solar self-consumption efficiency.
Home Backup Power
Provides reliable backup power during grid outages, ensuring continuous operation of essential household appliances and equipment.
Off-grid Home Energy System
Suitable for remote areas without stable grid access, providing an independent and reliable renewable energy solution.
Villa & Residential Buildings
Designed for houses, villas and residential buildings requiring efficient energy management and power independence.
Emergency Power Supply
Supports emergency energy needs for lighting, communication equipment and other critical household loads.
Safety & Compliance
CE Certification
The system complies with applicable European safety and EMC requirements for residential energy storage applications.
UN38.3 Tested
The lithium battery system has passed UN38.3 transportation testing requirements for safe shipment.
MSDS Documentation
Material Safety Data Sheet is available to provide safety information for battery handling and transportation.
Transportation Compliance Documents
Sea and road transportation appraisal documents are available to support safe logistics and international shipment.
OEM & ODM Service
Customized Energy Storage Solutions
We provide OEM and ODM services for residential energy storage systems, supporting customized solutions based on different application requirements.
Customized Battery Capacity
Battery capacity and system configuration can be customized to meet different household energy storage requirements.
Customized Appearance & Branding
Support customized product labels, logos and appearance design for customers’ brand requirements.
Flexible Communication Integration
Support communication customization including CAN, RS485 and other protocols for compatibility with different inverter systems.
Professional Technical Support
Our engineering team provides support from product selection, system configuration to mass production.
