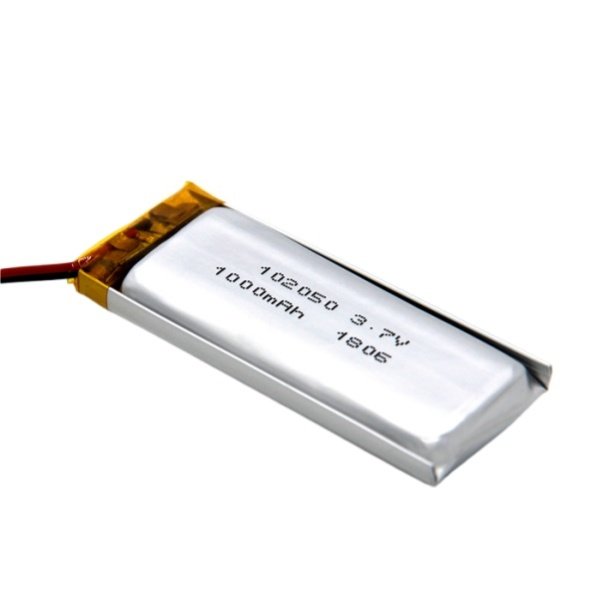

3.7V 1000mAh 102050 LiPo Battery for GPS & IoT Devices
- Model: LNC102050
- Voltage: 3.7V
- Capacity: 1000mAh
- Cell size: 10*20*50(mm)
- Battery with PCM: 10.2*20.5*52(mm)
3.7V 1000mAh LiPo Battery – LNC102050
Rechargeable Lithium Polymer Battery for Portable Electronics, IoT Devices & Wearable Applications
📌 Product Overview
The LNC102050 3.7V 1000mAh Li-Polymer Battery is a compact rechargeable pouch cell designed for portable electronics, wearable devices, and IoT applications.
Featuring high energy density, stable discharge performance, and flexible integration capability, this battery is suitable for compact electronic products requiring reliable and lightweight power solutions.
Optional PCM/PCB protection solutions and connector customization are available for OEM/ODM projects.
⚙️ Key Features
📐 Electrical & Mechanical Specifications
| Parameter | Specification |
|---|---|
| Model | LNC102050 |
| Nominal Capacity | 1000mAh |
| Nominal Voltage | 3.7V |
| Charge Cut-off Voltage | 4.2V |
| Standard Charge Current | 0.2C |
| Max Continuous Discharge | 1C |
| Dimensions | 10.2 × 20.5 × 52 mm (PCM included) |
| Cycle Life | ≥300 cycles (≥85% capacity retention) |
🔒 Safety Protection Options
- Overcharge protection
- Over-discharge protection
- Overcurrent protection
- Short-circuit protection
- Optional 2.5V or 3.0V cutoff protection PCB
📦 Customization Options
📱 Applications
Wearable Devices
Smart Rings
IoT Sensors
GPS Trackers
Portable Electronics
Medical Devices
⚡ Engineering Notes
For OEM/ODM projects, it is recommended to confirm:
- Available installation space (L × W × T)
- Peak current requirement
- Continuous discharge current
- Protection board requirement
Engineering samples are available for mechanical and electrical validation.
📩 Request Samples or Custom Battery Solution
Please provide your required battery size, capacity target, current requirement, and application details.
Our engineering team will recommend the most suitable battery configuration for your project.
