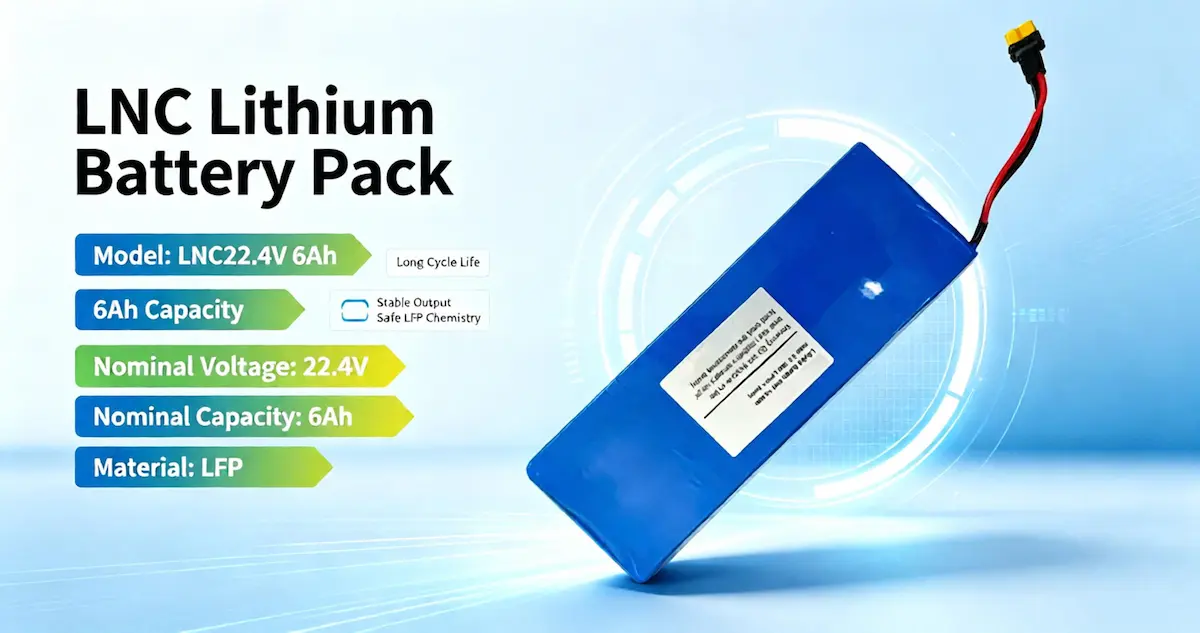

The 22.4V 6Ah 7S1P 32700 LiFePO4 battery is a rechargeable lithium iron phosphate battery pack designed for solar lighting, outdoor equipment, and compact energy storage applications. Built with LiFePO4 chemistry and 32700 cells, this battery pack delivers stable voltage, dependable cycling performance, and excellent safety for applications that require reliable rechargeable power.
With a nominal voltage of 22.4V and a capacity of 6Ah, this 7S1P battery configuration provides a practical balance between energy capacity, operating stability, and compact design. The battery can also be customized in dimensions, wiring, connectors, protection functions, and mechanical structure to match different equipment requirements.
For product specifications and customization options, you can also view the 22.4V 6Ah 7S1P 32700 LiFePO4 Battery directly.
22.4V 6Ah 7S1P 32700 LiFePO4 Battery Specifications
This rechargeable LiFePO4 battery pack uses lithium iron phosphate chemistry, which is well suited to applications requiring long service life, thermal stability, and dependable daily charging and discharging. The 7S1P configuration is suitable for systems designed around a 22.4V nominal battery voltage.
| Specification | Details | Remarks |
|---|---|---|
| Battery Type | LiFePO4 Battery | Lithium Iron Phosphate |
| Model | LNC22.4V 6Ah | Custom models available |
| Battery Configuration | 7S1P | 32700 LiFePO4 cells |
| Nominal Voltage | 22.4V | 7-cell series configuration |
| Nominal Capacity | 6Ah | Custom capacity available |
| Cell Chemistry | LFP | LiFePO4 chemistry |
| Cell Type | 32700 | Rechargeable lithium battery cell |
| Dimensions | Custom | L × W × H (mm) |
| Cycle Life | ≥2000 cycles | Depending on operating conditions |
| Charging Method | CC/CV | Constant Current / Constant Voltage |
| Maximum Charge Voltage | 25.55V | Application dependent |
| Discharge Cut-off Voltage | 17.5V | Application dependent |
| Standard Charge Current | 0.2C | Recommended charging condition |
| Standard Discharge Current | 0.2C | Recommended discharge condition |
| Maximum Charge Current | 5A | Depending on application |
| Maximum Discharge Current | 5A | Depending on application |
| Peak Current | / | Application dependent |
| Operating Temperature | Charge: 0°C to 45°C Discharge: -20°C to 60°C | Recommended range |
| Storage Temperature | -20°C to 45°C | Recommended storage range |
Why Choose a 22.4V LiFePO4 Battery Pack?
LiFePO4 battery technology is widely used in outdoor power equipment and renewable energy systems because of its combination of safety, cycle life, and stable performance. Compared with conventional rechargeable battery technologies, a 22.4V LiFePO4 battery pack can provide dependable energy storage for equipment that operates regularly in outdoor or unattended environments.
Long Cycle Life for Repeated Daily Use
The battery is designed for a cycle life of 2000 or more charge and discharge cycles under appropriate operating conditions. This makes the 6Ah LiFePO4 battery suitable for applications where the battery is charged and discharged regularly, helping reduce the frequency of battery replacement.
Stable and Reliable LiFePO4 Chemistry
Lithium iron phosphate chemistry offers strong thermal and chemical stability. This makes LiFePO4 battery packs a practical choice for solar lighting, outdoor electronics, and other applications where dependable operation is important.
Efficient Energy Storage
The 22.4V 6Ah configuration provides approximately 134.4Wh of nominal energy based on nominal voltage and capacity. This allows the battery to store energy generated by compatible charging systems and deliver stable power during operation.
Suitable for Outdoor Operating Conditions
The battery is specified for charging from 0°C to 45°C and discharging from -20°C to 60°C. This broad recommended operating range makes it suitable for many outdoor lighting and energy storage applications, subject to system-level design and environmental requirements.
Flexible Battery Pack Configuration
The battery pack can be adapted to different equipment designs. Depending on project requirements, customization can include battery voltage, capacity, dimensions, cell arrangement, cables, connectors, BMS functions, and housing structure.
Applications of the 22.4V 6Ah LiFePO4 Battery
This 7S1P 32700 LiFePO4 battery pack can be integrated into a variety of rechargeable power systems. Its combination of stable output, long cycle life, and outdoor suitability makes it particularly useful for solar-powered equipment and compact energy storage applications.
Solar Street Lighting
The 22.4V LiFePO4 battery can store energy generated by solar panels during the daytime and supply power to compatible LED lighting systems after dark. Its long cycle life makes it suitable for solar street light systems that require repeated daily operation.
Solar Garden and Landscape Lighting
Compact LiFePO4 battery packs can be used in garden lights, landscape lighting, decorative lighting, and other outdoor solar-powered systems where stable rechargeable energy storage is required.
Solar Flood Lights
For outdoor security lighting and solar flood light systems, a rechargeable LiFePO4 battery can provide stored energy for nighttime operation. Battery capacity and discharge characteristics can be customized according to the required operating time and load.
Solar Wall Lights
The 6Ah battery configuration can be integrated into residential and commercial solar wall lighting systems where space, cycle life, and reliable energy storage are important considerations.
Solar Pathway and Park Lighting
Solar pathway lights, park lighting, and landscape illumination often operate without direct access to grid power. A properly configured LiFePO4 battery pack can provide rechargeable energy storage for these applications.
Outdoor Signs and Industrial Lighting
The battery can also be considered for solar-powered warning lights, signs, monitoring equipment, and other outdoor electronic systems. The battery configuration can be adjusted according to the equipment’s voltage, current, runtime, and installation requirements.
Custom 32700 LiFePO4 Battery Pack Solutions
Every application has different power and installation requirements. For this reason, LNC provides customized LiFePO4 battery pack solutions rather than relying only on standard battery configurations. Customers can provide their required voltage, capacity, dimensions, current, runtime, connector type, and application environment for battery engineering evaluation.
Voltage and Capacity Customization
Battery voltage and capacity can be configured according to the power requirements of your equipment. Different series and parallel configurations can be developed when a different voltage or energy capacity is required.
Custom Battery Dimensions and Structure
Battery pack dimensions can be adapted to available installation space. Cell arrangement, wiring layout, enclosure structure, mounting position, and other mechanical requirements can be considered during battery pack development.
Battery Management System Protection
A suitable BMS can be incorporated into the battery pack to provide functions such as overcharge protection, over-discharge protection, over-current protection, short-circuit protection, and temperature monitoring, depending on the project requirements.
Custom Cables and Connectors
Different equipment uses different connection methods. Cable length, connector type, terminals, wire specifications, and wiring configurations can be customized to simplify battery installation and integration.
Outdoor Battery Design
For outdoor applications, battery pack design may need to consider temperature fluctuations, moisture, vibration, mechanical protection, and long-term unattended operation. These requirements can be incorporated into the battery design according to the application environment.
OEM and ODM Battery Manufacturing
LNC supports OEM and ODM battery pack projects from initial requirements and prototype samples through production. Customized battery solutions can be developed for solar lighting, energy storage equipment, portable devices, and other applications requiring rechargeable lithium battery technology.
How to Select the Right LiFePO4 Battery Pack
Choosing the right battery requires more than simply matching nominal voltage and capacity. The equipment’s operating current, expected runtime, charging method, available installation space, environmental conditions, and protection requirements should all be considered.
For example, a 22.4V 6Ah LiFePO4 battery may be suitable when the system is designed around a 22.4V nominal voltage and requires approximately 6Ah of energy capacity. If your application requires a different runtime or power output, LNC can evaluate alternative cell configurations and capacities.
When requesting a customized battery pack, it is useful to provide the equipment voltage, working current, required runtime, charging voltage, battery dimensions, operating temperature, connector requirements, and intended application. This information helps engineers determine a suitable battery configuration and protection strategy.
Request a Custom 22.4V LiFePO4 Battery Solution
If you are looking for a 22.4V LiFePO4 battery pack for solar lighting, outdoor equipment, or energy storage, LNC can support customized battery development based on your application requirements.
You can view the 22.4V 6Ah 7S1P 32700 LiFePO4 battery product page for more product information, or contact LNC with your required voltage, capacity, dimensions, current, connectors, and application details.
- Custom LiFePO4 battery voltage and capacity
- 32700 cell configuration options
- OEM and ODM battery pack development
- Custom BMS, cables, and connectors
- Solutions for solar lighting and outdoor energy storage
LNC specializes in advanced rechargeable battery solutions, including LiFePO4, Li-ion, Li-polymer, LiMnO2, LiSOCl2, and sodium-ion battery technologies. With customized battery pack development and manufacturing capabilities, LNC supports different power requirements from prototype development to volume production.
Frequently Asked Questions About 22.4V LiFePO4 Batteries
1. What is a 22.4V 6Ah 7S1P LiFePO4 battery?
A 22.4V 6Ah 7S1P LiFePO4 battery is a rechargeable lithium iron phosphate battery pack using seven 32700 LiFePO4 cells connected in series. It has a nominal voltage of 22.4V and a nominal capacity of 6Ah, making it suitable for compatible solar lighting and energy storage systems.
2. How much energy does a 22.4V 6Ah battery store?
Based on nominal voltage and capacity, a 22.4V 6Ah battery provides approximately 134.4Wh of nominal energy. Actual usable energy depends on the load, discharge conditions, BMS settings, temperature, and other system factors.
3. Is this LiFePO4 battery suitable for solar lighting?
Yes. LiFePO4 batteries are commonly considered for solar lighting because they offer long cycle life, stable performance, and good thermal stability. The 22.4V 6Ah configuration can be used in compatible solar street lights, garden lights, flood lights, pathway lights, and other outdoor lighting systems.
4. Can the 22.4V 6Ah LiFePO4 battery be customized?
Yes. Depending on the project, LNC can customize battery capacity, dimensions, cell configuration, BMS protection, cables, connectors, housing structure, and other battery pack specifications. OEM and ODM development are also available.
5. What information is needed to develop a custom LiFePO4 battery pack?
For a custom battery solution, it is recommended to provide the required voltage, capacity or energy, continuous and peak current, operating time, charging method, battery dimensions, operating temperature, connector requirements, and application. These details allow the battery engineering team to recommend an appropriate configuration.
