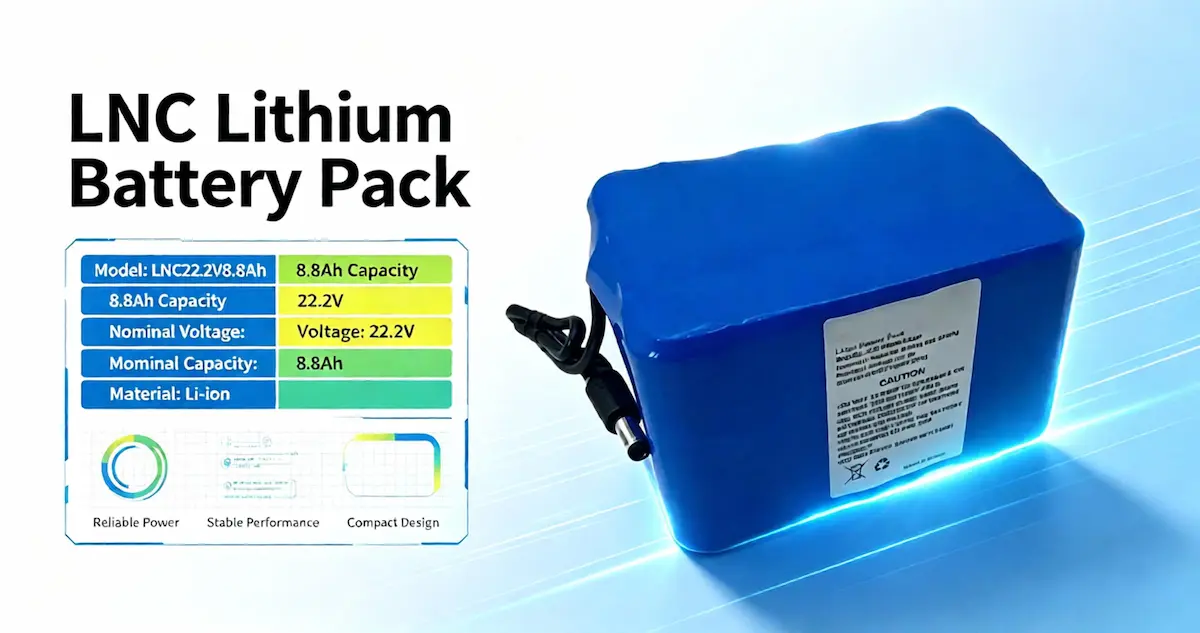

The 22.2V 8.8Ah 6S4P 18650 Li-ion battery is a rechargeable lithium-ion battery pack designed for applications that require reliable power output, high energy density, and flexible integration. Built with a 6S4P cell configuration, this battery pack delivers a nominal voltage of 22.2V, a capacity of 8.8Ah, and a rated energy of 195.36Wh.
Using rechargeable 18650 lithium-ion cells, the battery is suitable for industrial equipment, robotics, portable electronic devices, automated systems, and other customized power applications. The pack can also be configured with suitable connectors, dimensions, protection functions, and other features according to specific equipment requirements.
22.2V 8.8Ah Li-ion Battery Overview
Model: LNC22.2V8.8Ah
Nominal Voltage: 22.2V
Nominal Capacity: 8.8Ah
Battery Chemistry: Lithium-ion
Cell Configuration: 6S4P
Cell Type: 18650 Rechargeable Li-ion Cells
Rated Energy: 195.36Wh
This 22.2V lithium-ion battery pack operates within a voltage range of 18V to 25.2V. Its 6-series cell structure provides a stable voltage platform, while the 4-parallel configuration helps increase overall capacity and energy storage. This combination makes the battery suitable for equipment requiring longer operating time without using an unnecessarily large battery system.
Technical Specifications
| Specification | Parameter |
|---|---|
| Model | LNC22.2V8.8Ah |
| Nominal Voltage | 22.2V |
| Nominal Capacity | 8800mAh / 8.8Ah |
| Rated Energy | 195.36Wh |
| Battery Chemistry | Lithium-ion |
| Cell Type | 18650 Li-ion Rechargeable Cell |
| Cell Configuration | 6S4P |
| Operating Voltage Range | 18V–25.2V |
| Charging Voltage | 25.2V |
| Standard Charging Current | 0.2C |
| Maximum Charging Current | 1C |
| Standard Discharge Current | 0.2C |
| Maximum Continuous Discharge Current | 1C |
| Discharge Cut-off Voltage | 18V |
| Dimensions | 120 × 75 × 68 mm / Customizable |
| Connector | Customizable According to Application Requirements |
| Charging Temperature | 0°C–45°C |
| Discharge Temperature | -20°C–60°C |
| Storage Temperature | -20°C–45°C |
Key Advantages of the 22.2V 8.8Ah 6S4P 18650 Battery Pack
Stable 22.2V Power Output
The 6S battery configuration provides a nominal output of 22.2V, making this rechargeable Li-ion battery suitable for equipment that requires a stable medium-voltage power source. With an operating range of 18V to 25.2V, the battery can support compatible electronic and industrial systems throughout its discharge cycle.
High Capacity and Energy Storage
With an 8.8Ah capacity and 195.36Wh of rated energy, this 22.2V battery pack is designed to provide extended operating time for compatible equipment. The 6S4P configuration combines multiple 18650 cells to increase total capacity while maintaining a compact battery structure.
18650 Lithium-ion Cell Design
The battery pack uses a 6S4P arrangement of rechargeable 18650 lithium-ion cells. This cell format offers a practical balance between energy density, battery size, weight, and flexible pack design, making it suitable for a wide range of OEM and custom battery applications.
Reliable Continuous Discharge Performance
The battery supports standard charging and discharge currents of 0.2C, with a maximum charging current and maximum continuous discharge current of up to 1C under the specified design conditions. This allows the 22.2V 8.8Ah Li-ion battery pack to support applications requiring dependable and consistent power delivery.
Integrated Battery Protection Options
Battery management and protection functions can be configured according to application requirements. Depending on the customized battery design, protection features may include over-charge protection, over-discharge protection, over-current protection, short-circuit protection, and temperature-related protection.
Flexible OEM Battery Pack Design
Dimensions, connectors, cable length, capacity, current requirements, and battery management functions can be adjusted for different projects. This makes the 22.2V lithium-ion battery pack suitable for OEM battery pack development and customized equipment integration.
Applications of the 22.2V 8.8Ah Li-ion Battery
The 22.2V 8.8Ah 6S4P 18650 Li-ion battery pack is suitable for applications that require rechargeable power, compact installation, high energy density, and dependable voltage output.
Industrial Equipment
Suitable for industrial devices, monitoring equipment, automated machinery, and control systems requiring a rechargeable 22.2V battery solution.
Robotics and Automated Systems
The battery can be used in compatible AGVs, mobile robots, intelligent equipment, and other automated systems that require stable and portable energy storage.
Portable Electronic Equipment
Its compact 18650 battery configuration makes it suitable for portable equipment, inspection devices, testing instruments, and mobile electronic applications where battery capacity and installation space must be considered together.
Outdoor and Mobile Power Systems
The 22.2V Li-ion battery pack can also be considered for compatible portable power systems, mobile devices, and equipment used in demanding operating environments.
Custom Equipment Projects
For OEM equipment manufacturers and product developers, the battery configuration can be adapted to specific voltage, capacity, size, connector, and current requirements for customized projects.
Custom 22.2V Li-ion Battery Pack Solutions
LNC provides customized lithium-ion battery pack solutions for different equipment and power requirements. In addition to the standard 22.2V 8.8Ah 6S4P design, battery packs can be developed based on application-specific electrical and mechanical requirements.
Customization options may include battery voltage, capacity, cell configuration, dimensions, housing design, output current, connector type, cable length, communication functions, and BMS protection requirements.
- Custom Voltage and Capacity
- 6S and Other Custom Cell Configurations
- 18650 Li-ion Battery Pack Design
- Custom Battery Dimensions and Housing
- Connector and Cable Customization
- BMS and Battery Protection Functions
- OEM and ODM Battery Pack Support
- Custom Solutions for Industrial and Electronic Applications
Request a Customized 22.2V 8.8Ah Battery Solution
If you are looking for a customized 22.2V lithium-ion battery pack for your equipment or project, you can provide your technical requirements for battery evaluation.
Helpful information includes required voltage, capacity, maximum discharge current, charging requirements, battery dimensions, connector type, application environment, and expected protection functions.
Based on your requirements, LNC can support the development of a suitable rechargeable Li-ion battery pack solution. You can also review the standard 22.2V 8.8Ah 6S4P 18650 Li-ion Battery as a reference for your battery project.
- ✓ Custom Voltage and Capacity
- ✓ Custom 18650 Battery Pack Configuration
- ✓ OEM and ODM Battery Pack Support
- ✓ BMS and Protection Function Options
- ✓ Industrial and Portable Power Applications
About LNC Battery
LNC specializes in advanced battery solutions for a wide range of power applications. Our battery development capabilities cover lithium-ion batteries, LiFePO4 batteries, lithium polymer batteries, LiMnO2 batteries, LiSOCl2 batteries, and sodium-ion battery technologies.
From standard rechargeable battery packs to customized OEM and ODM solutions, we support projects with different voltage, capacity, power output, size, and application requirements. Quality control and battery design are focused on delivering reliable energy solutions for industrial, electronic, portable, and customized applications.
Frequently Asked Questions
1. What does 6S4P mean in a 22.2V 8.8Ah battery pack?
6S4P means that the battery pack uses six cell groups connected in series and four cells connected in parallel within each group. The 6-series configuration creates the nominal 22.2V voltage, while the parallel configuration increases the total battery capacity.
2. What is the charging voltage for a 22.2V 6S Li-ion battery?
The specified charging voltage for this 22.2V 6S lithium-ion battery pack is 25.2V. A compatible charging solution should be selected according to the battery design and charging requirements.
3. Can the 22.2V 8.8Ah battery dimensions be customized?
Yes. The standard reference dimensions are 120 × 75 × 68 mm, while customized dimensions may be available depending on cell selection, capacity requirements, housing design, BMS configuration, and other project requirements.
4. Can I customize the connector and BMS for this 18650 battery pack?
Yes. Connector type, cable configuration, battery management functions, and protection requirements can be customized according to the equipment interface and application requirements.
5. What applications are suitable for a 22.2V 8.8Ah Li-ion battery pack?
This type of rechargeable lithium-ion battery can be used in compatible industrial equipment, robotics, automated systems, portable devices, inspection equipment, mobile power applications, and customized electronic products. Final battery selection should be based on the equipment’s voltage, current, capacity, charging, and environmental requirements.
