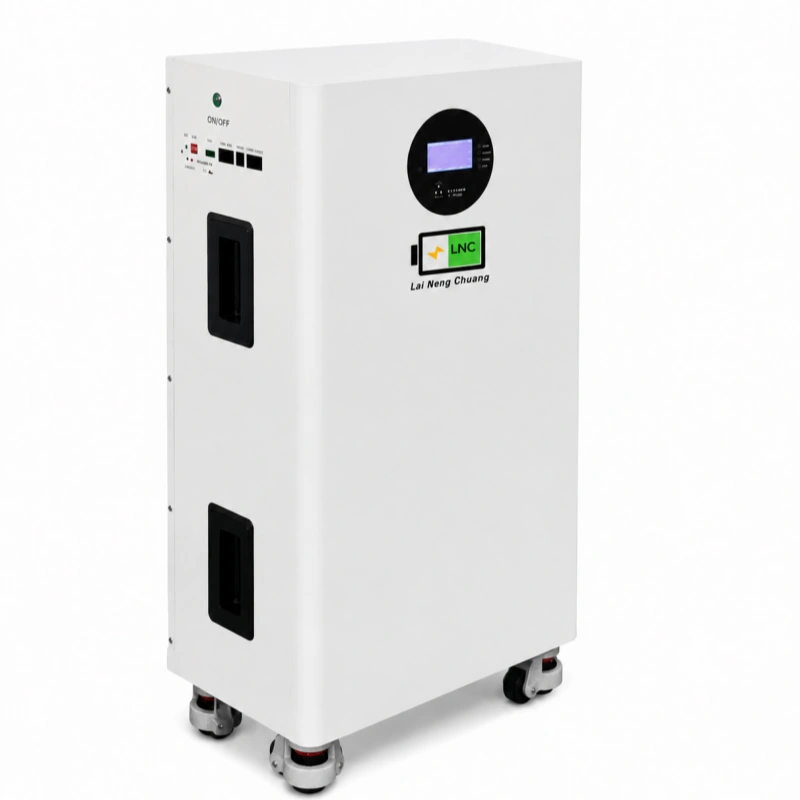

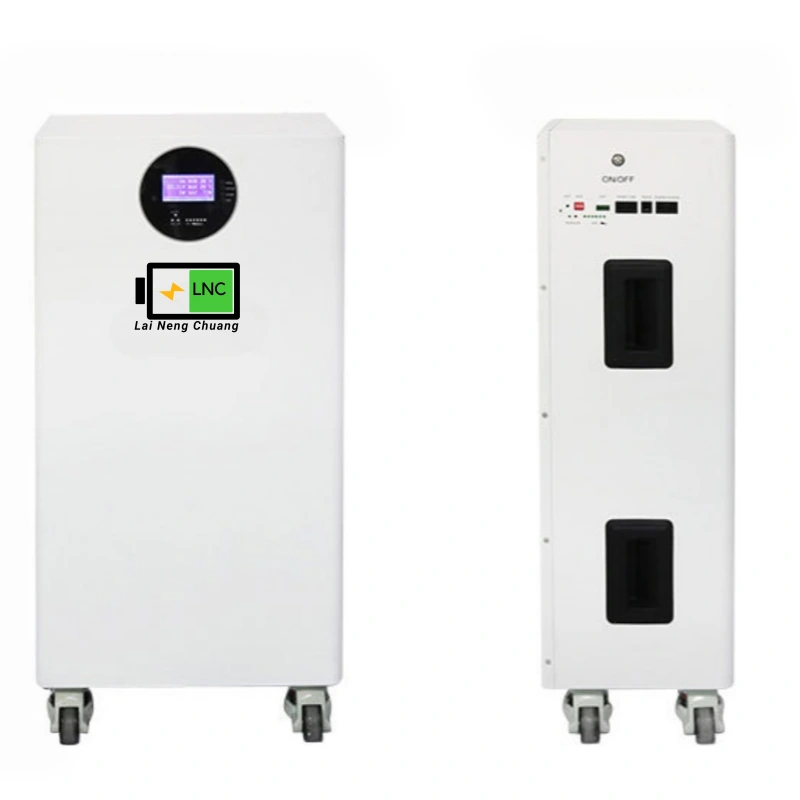

5kW 15kWh All-in-One Home Energy Storage Battery System with Hybrid Inverter
Key Specifications:
⚡ Rated Power: 5kW
🔋 Battery Capacity: 15kWh
🔋 Battery Voltage: 48V
🔋 Battery Capacity: 314Ah
🔋 Battery Chemistry: LiFePO4
🔄 Cell Cycle Life: ≥8000 Cycles
| Item | Specification |
|---|---|
| Product Type | All-in-One Home Energy Storage System |
| Application | Residential Solar Energy Storage / Home Backup Power |
| Battery Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Battery Energy | Approx. 15kWh |
| Rated Voltage | 48V |
| Rated Capacity | 314Ah |
| Battery Configuration | 15S1P |
| Inverter Rated Power | 5kW |
| Charging Voltage | 54.75V |
| Discharge Cut-off Voltage | 37.5V |
| Maximum Continuous Charging Current | 100A |
| Maximum Continuous Discharging Current | 100A |
| Cycle Life (Cell) | ≥8000 cycles (25℃, 0.5C/0.5C, 70% capacity retention) |
| Charging Temperature | 0~55℃ |
| Discharging Temperature | -20~65℃ |
| Communication | CAN / RS232 |
| Dimension | 885 × 580 × 234mm |
| Weight | Approx. 120kg |

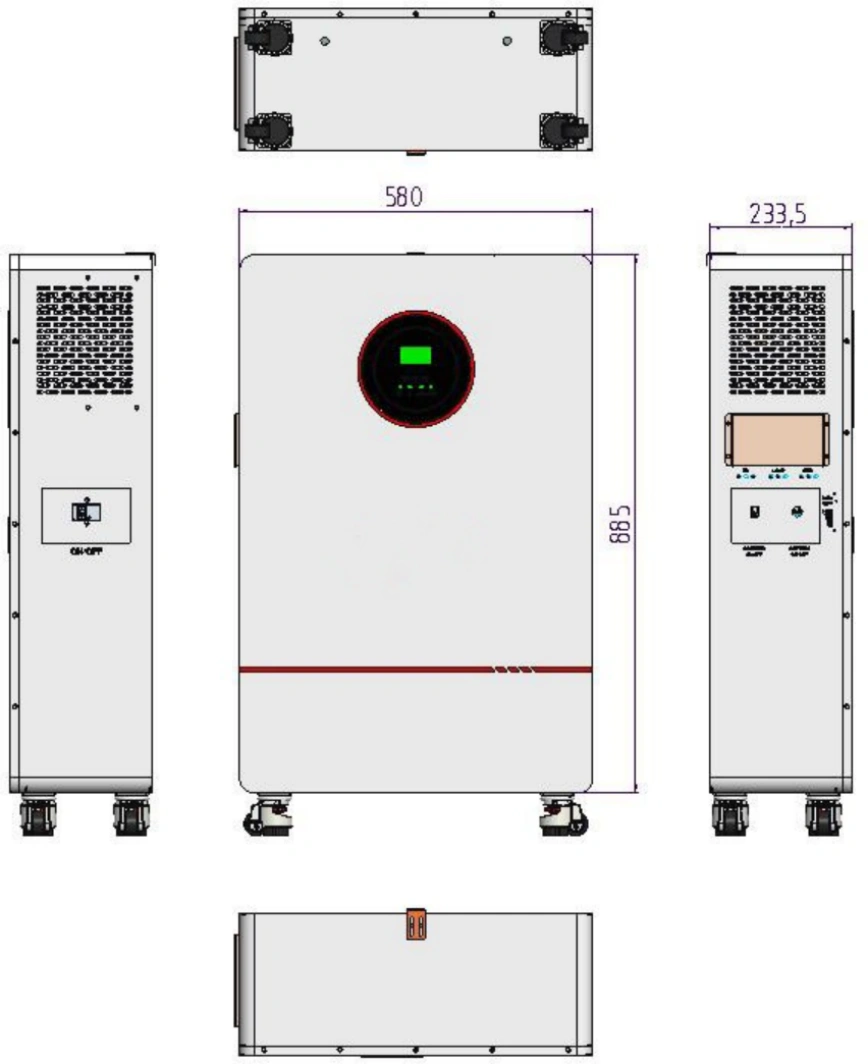

Product Size Diagram

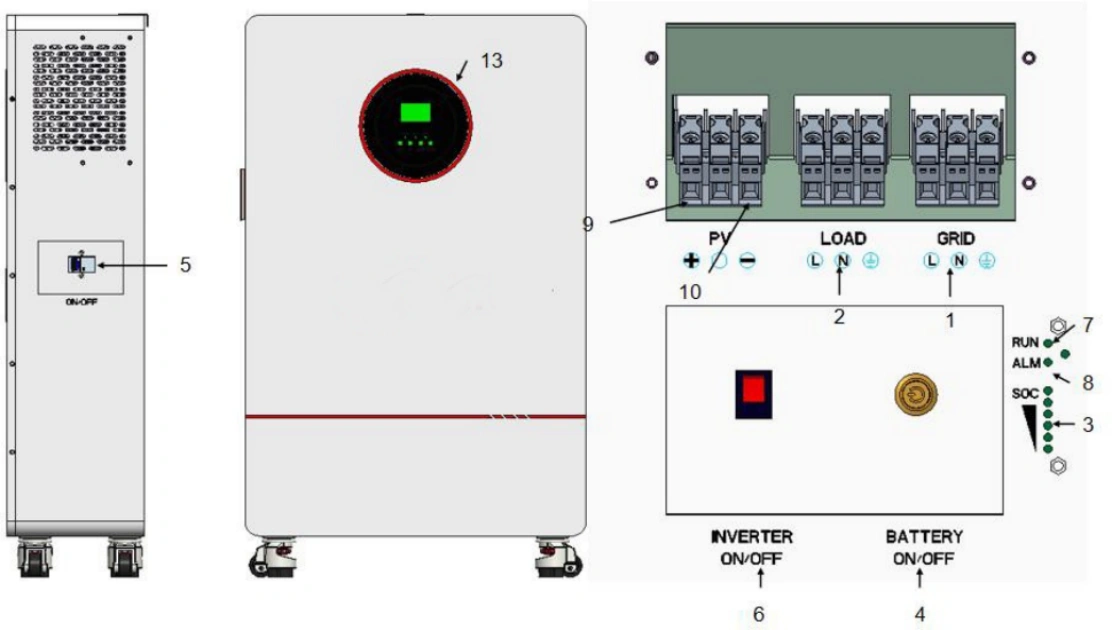

Battery Case Structure & Interface Description
| No. | Description | Silk-screen | Remarks |
|---|---|---|---|
| 1 | AC Input | GRID | AC input connector |
| 2 | AC Output | LOAD | Output connector |
| 3 | Battery Status | SOC | Displays remaining battery capacity |
| 4 | Battery Switch | BAT/SW | Start/stop battery power |
| 5 | Air Switch | / | Circuit protection |
| 6 | Inverter Switch | INVERTER/SW | Start/stop inverter power supply |
| 7 | Operation Indicator Light | RUN | Operating status indicator |
| 8 | Alarm Indicator | ALM | Fault alarm indicator |
| 9 | Photovoltaic Input Positive | PV+ | PV input connector |
| 10 | Photovoltaic Input Negative | PV- | PV input connector |
Product Advantages
1. High-Capacity All-in-One Energy Storage Solution
Integrated with a 5kW inverter and approximately 15kWh LiFePO4 battery capacity, this system provides a complete residential energy storage solution for higher household energy demands.
2. Safe & Stable LiFePO4 Battery Technology
Using lithium iron phosphate (LiFePO4) battery cells, the system offers excellent thermal stability, high safety performance and reliable long-term operation.
3. Long Service Life Performance
Equipped with high-performance LiFePO4 cells with excellent cycle durability, the system is designed for long-term daily charging and discharging applications.
4. Reliable Home Backup Power
With 15kWh energy storage capacity, the system provides dependable backup power for residential loads during grid outages or emergency situations.
5. Intelligent Energy Management
Supports SOC monitoring and CAN/RS232 communication interfaces for efficient battery monitoring and system integration.
6. Simplified Installation & System Integration
The integrated design combines battery storage and inverter functions into one cabinet, reducing installation complexity and saving space.
Applications

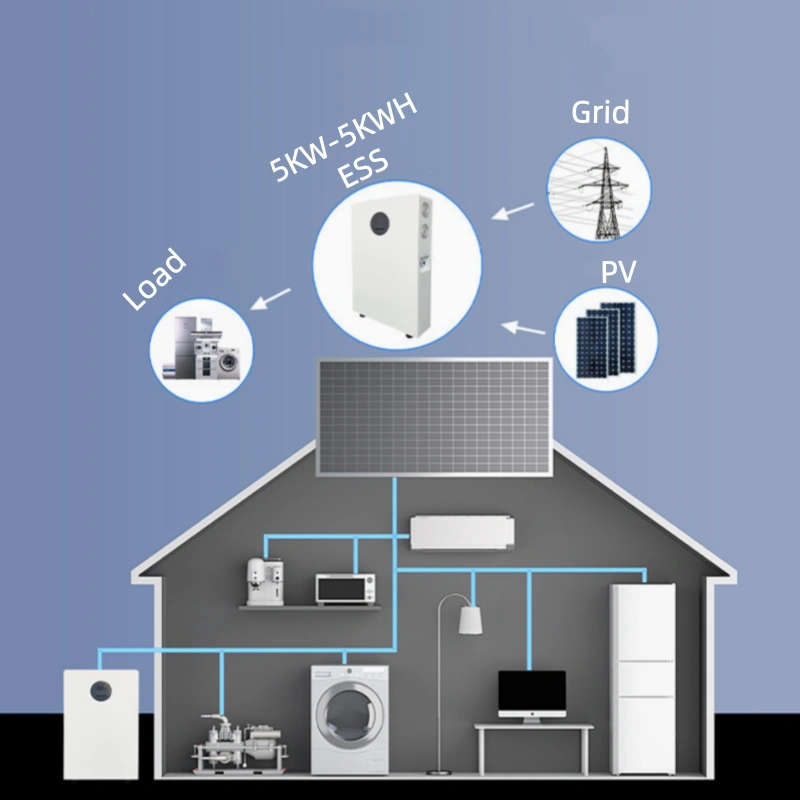

Residential Solar Energy Storage
Stores excess solar energy during the daytime and supplies electricity during the evening, improving solar energy utilization.
Whole Home Backup Power
Provides reliable backup energy for household appliances, lighting, communication devices and essential loads during power interruptions.
Villa & Large Residential Buildings
Suitable for villas and larger homes requiring higher energy storage capacity and stable power supply.
Off-grid Solar Applications
Provides an independent renewable energy solution for remote areas with limited or unavailable grid access.
Energy Cost Management
Stores electricity during low-cost periods and supplies power during peak demand periods to improve energy efficiency.
Safety & Compliance
CE Certification
Complies with applicable European safety and EMC requirements for residential energy storage applications.
UN38.3 Tested
Passed UN38.3 transportation testing requirements to support safe international shipment of lithium battery systems.
MSDS Documentation
Material Safety Data Sheet is available to provide battery safety information for handling and transportation.
Sea & Road Transportation Documents
Transportation appraisal documents are available to support international logistics requirements.
OEM & ODM Service
Customized Energy Storage Solutions
We provide OEM and ODM services for residential energy storage systems according to different market requirements and application scenarios.
Customized Capacity & Configuration
Support customized battery capacity, system configuration and electrical parameters to meet different energy storage requirements.
Branding & Appearance Customization
Support customized labels, logos and product appearance for distributors and brand partners.
Communication & System Integration
Support communication customization including CAN, RS232 and other protocols for compatibility with different energy management systems.
Professional Technical Support
Provide technical support from product selection and configuration evaluation to mass production.
Request A Quote
Looking for a reliable home energy storage solution? Contact us for customized battery solutions, pricing and technical support.
