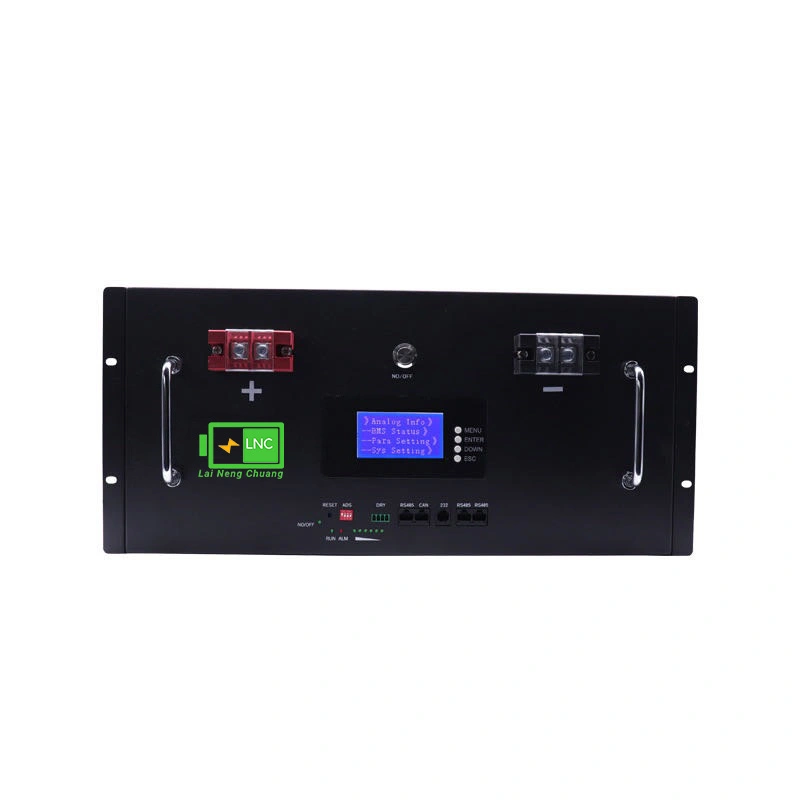

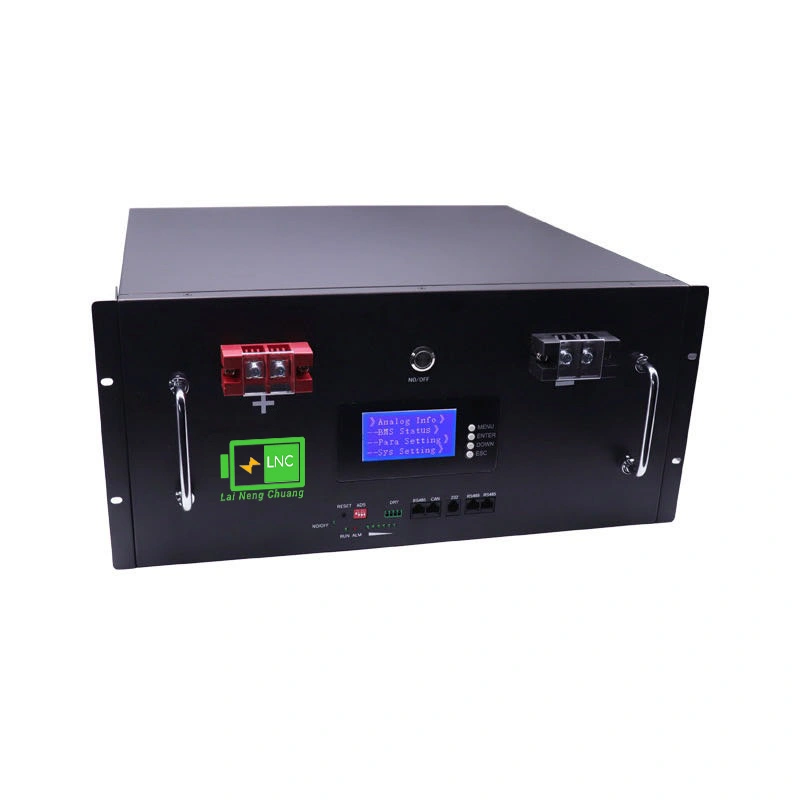

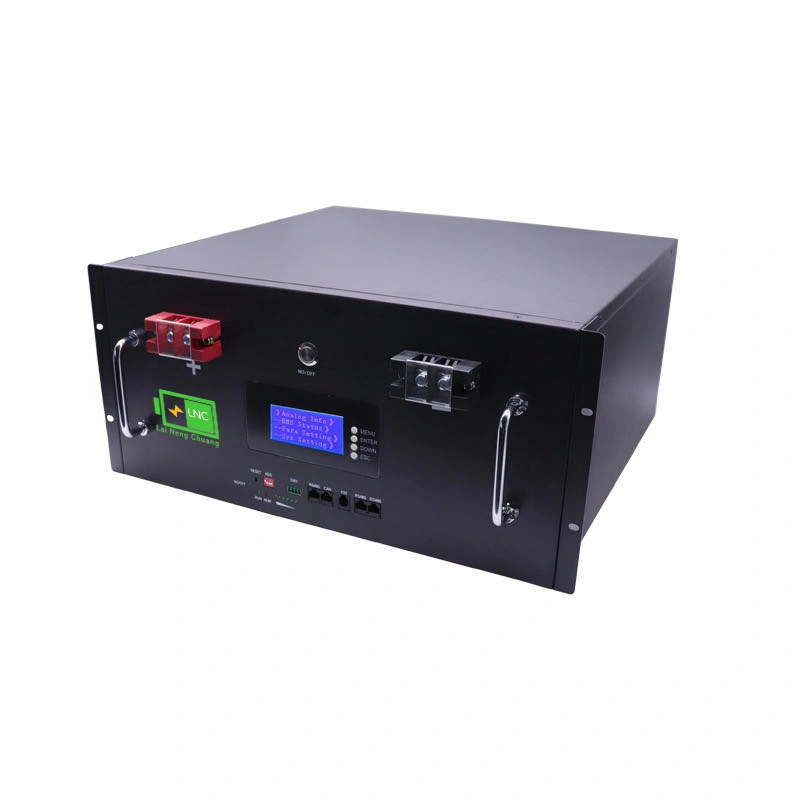

51.2V 200Ah LiFePO4 Battery – High Capacity & Long Life
Model: LNC-51.2V200AH
Nominal Voltage: 51.2V
Nominal Capacity: 200Ah
Material: LFP
Product Specification
| Parameter | Value |
|---|---|
| Product Model | LNC-51.2V200AH |
| Rated Voltage | 51.2V |
| Rated Capacity | 200Ah |
| Rated Energy | 10.24kWh |
| Cell Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Configuration | 16S1P |
| Working Voltage Range | 43.2V–57.6V |
| Output Power | Max. 11kW |
| Maximum Charge Current | 100A |
| Maximum Discharge Current | 200A |
| Display | LCD Display |
| Communication Interface | RS485 / RS232 / CAN |
| BMS Protection Functions | Overcurrent, Overvoltage, Overcharge, Overdischarge, Short Circuit, Over-temperature, and more |
| Compatible Inverters | Deye / Afore / MEGAREVO / Solis / Growatt / LuxPower / Voltronic / GoodWe / SMA / Victron / SOROTEC / MUST / etc. |
| Charge Temperature | 0–45°C (32–113°F) |
| Discharge Temperature | -20–65°C (-4–149°F) |
| Storage Temperature | -10–45°C (14–113°F) |
| Cooling Method | Natural Cooling |
| Design Life | 10 Years |
| Cycle Life | 6000 cycles @ 25°C, 0.5C, 80% DOD |
| Battery Dimensions (W × D × H) | 440 × 580 × 222 mm |
| Package Dimensions (W × D × H) | 550 × 680 × 285 mm |
| Net Weight | 87.0 kg |
| Gross Weight | 93.0 kg |
Product Features
1. High Energy Capacity
With a rated voltage of 51.2V and a capacity of 200Ah, this LiFePO4 battery delivers 10.24kWh of energy for home energy storage, backup power, and other high-capacity applications.
2. Long Cycle Life
Designed for long-term energy storage with a cycle life of up to 6000 cycles at 25°C, 0.5C, and 80% DOD, helping reduce long-term battery replacement and maintenance costs.
3. High Power Output
Supports up to 200A maximum continuous discharge current and up to 11kW output power, providing reliable power for demanding energy storage and backup applications.
4. Intelligent BMS Protection
The built-in BMS provides multiple protection functions, including overcurrent, overvoltage, overcharge, overdischarge, short circuit, and over-temperature protection.
5. Smart Monitoring & Communication
An integrated LCD display provides convenient access to battery status, while CAN, RS232, and RS485 interfaces support communication with compatible inverters and energy management systems.
6. Wide Inverter Compatibility
Compatible with a wide range of mainstream inverter brands, including Deye, Afore, MEGAREVO, Solis, Growatt, LuxPower, Voltronic, GoodWe, SMA, Victron, SOROTEC, and MUST.
ESS Working Principle
Applications
Request a Quote
Looking for a reliable 51.2V 200Ah LiFePO4 battery for your energy storage or backup power application?
Contact us for pricing, technical specifications, lead time, and customization options.
