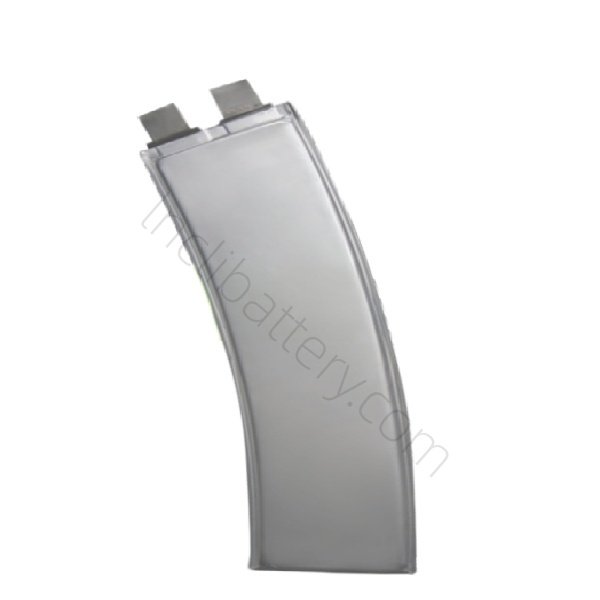

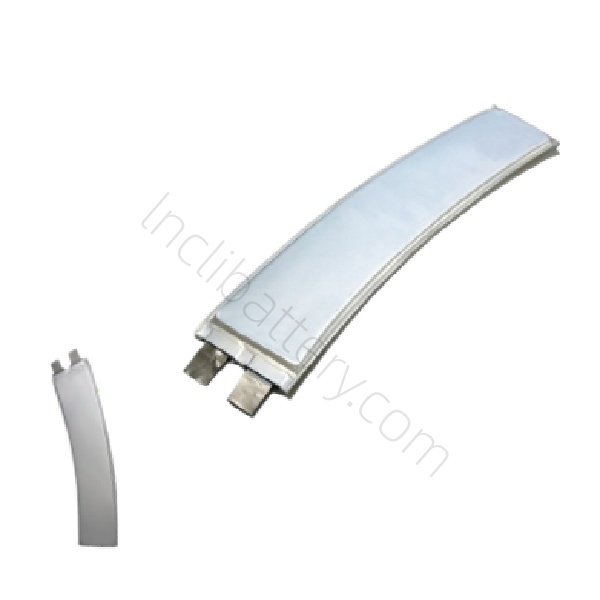

3.7V 1550mAh 3040167 High-Rate Curved LiPo Battery
- Model: LNC3040167
- Voltage: 3.7V
- Capacity: 1550mAh
- Size: 167 × 40 × 3mm
LNC3040167 High-Rate Curved LiPo Battery
High-power curved lithium polymer battery engineered for demanding applications such as military gear, medical devices, and fire detection equipment, delivering stable high-rate discharge performance and long cycle life.
High Rate 3C
Ultra Low 15mΩ
Curved Design
Product Overview
The LNC3040167 is a high-energy, high-discharge-rate lithium polymer battery designed for rugged and mission-critical electronic systems.
Its curved structural design enables integration into specialized equipment where standard prismatic cells cannot be applied.
With a low internal resistance (<15mΩ) and support for continuous 3C discharge, it ensures stable performance under high-load operating conditions.
Technical Specifications
Key Features
High Energy Density
Delivers strong energy output in a compact curved structure design.
High Discharge Capability
Supports continuous 3C discharge and up to 16A peak load performance.
Ultra Low Internal Resistance
Less than 15mΩ for improved efficiency and reduced energy loss.
Wide Temperature Range
Stable operation in -20°C to 45°C discharge environments.
Long Cycle Life
Maintains ≥75% capacity after 500 cycles.
Custom Curved Design
Engineered for military-grade curved and space-constrained equipment.
Applications
- Military Equipment
- Law Enforcement Devices
- Medical Equipment
- Fire Detection Systems
- High-Performance Industrial Electronics
OEM / ODM Custom Battery Solutions
We support customized curved lithium polymer battery solutions for high-rate and mission-critical applications, including voltage, capacity, shape, and discharge rate optimization.
