3.7V 1500mAh 755040 Semi-Cylindrical LiPo Battery
- Model: LNC755040
- Voltage: 3.7V
- Capacity: 1500mAh
- Size: 40 × 50 × 3mm

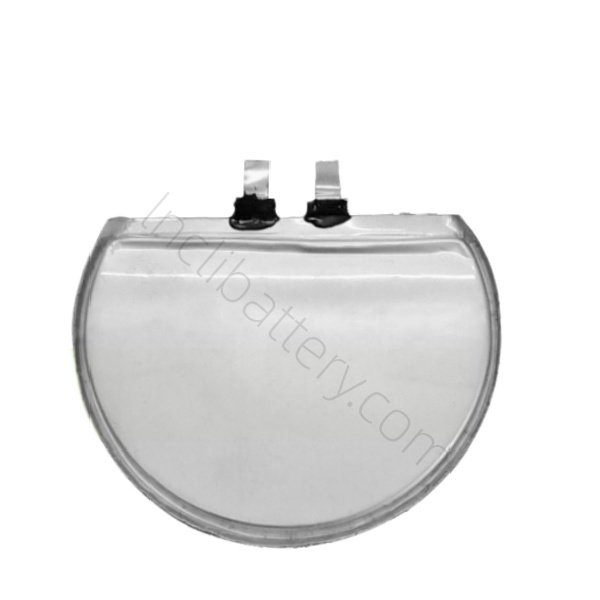

LNC755040 Semi-Cylindrical LiPo Battery
Compact semi-cylindrical lithium polymer battery designed for space-efficient electronic devices, and long cycle life.
40*50*7.5mm
Low IR <25mΩ
Semi-Cylinderical Design
Product Overview
The LNC755040 is a compact semi-cylindrical lithium polymer battery designed for space-efficient electronic devices. With a 3.7V nominal voltage and 1500mAh capacity, it provides stable power output and reliable performance for portable consumer and industrial applications.
Featuring a low internal resistance design, wide operating temperature range, and long cycle life, this battery is optimized for devices requiring both high energy density and efficient space utilization.
Technical Specifications
Key Features
High Energy Density
Delivers strong energy output in a compact curved structure design.
High Discharge Capability
Supports continuous 3C discharge and up to 16A peak load performance.
Ultra Low Internal Resistance
Less than 15mΩ for improved efficiency and reduced energy loss.
Wide Temperature Range
Stable operation in -20°C to 45°C discharge environments.
Long Cycle Life
Maintains ≥75% capacity after 500 cycles.
Custom Curved Design
Engineered for military-grade curved and space-constrained equipment.
Applications
- Medical devices
- GPS tracking systems
- Wearable electronics
- Mobile phones and communication devices
- Cameras and camcorders
- Walkie-talkies
- Portable consumer electronics (MP3, PDA, etc.)
OEM / ODM Custom Battery Solutions
We support customized curved lithium polymer battery solutions for high-rate and mission-critical applications, including voltage, capacity, shape, and discharge rate optimization.
