3.2V 3000mAh 26650 LiFePO4 Cells
Model: LNC26650-3000
Nominal Voltage: 3.2V
Nominal Capacity: 3000mAh
Material: LFP
Cylindrical Rechargeable Lithium-ion Cell LiFePO4-26650- 3.0Ah
| ITEMS | SPECIFICATION | REMARK |
|---|---|---|
Nominal Capacity |
3000mAh |
0.5C, current value of 3000mA at 1C |
Minimum Capacity |
2900mAh |
0.5C |
Nominal Voltage |
3.2V | |
AC Internal Resistance |
≤15mΩ |
AC 1KHz measurement at 25ºC±2ºC |
Maximum Charge Current |
9A |
25ºC |
Fast Discharge Current |
15A |
This current is the maximum current recommended for the combination of cells, and the specific value should be determined according to the combination structure. The maximum operating current is set at a temperatreu not exceeding 60ºC. |
Max Continuous Discharge Current |
30A | |
Pulse Discharge Current |
45A, 5s | |
Cycle Characteristic (25ºC) |
5000times (50%DOD);
3000times (80%DOD);
1500times(100%DOD); |
The residual capacity is no less than 80% of rated capacity at 1C/3C. |
Cycle Charateristic (25ºC) |
500times (100%DOD) |
The residual capacity is no less than 70% of rated capacity at 1C/10C rate. |
Working Temperature(Including temperature rise) |
Charge: 0~60ºC;
Discharge: -30~65ºC |
Regardless of the charging discharging mode of the battery, if it exceeds the operating temperature, please stop charging/discharging immediately. |

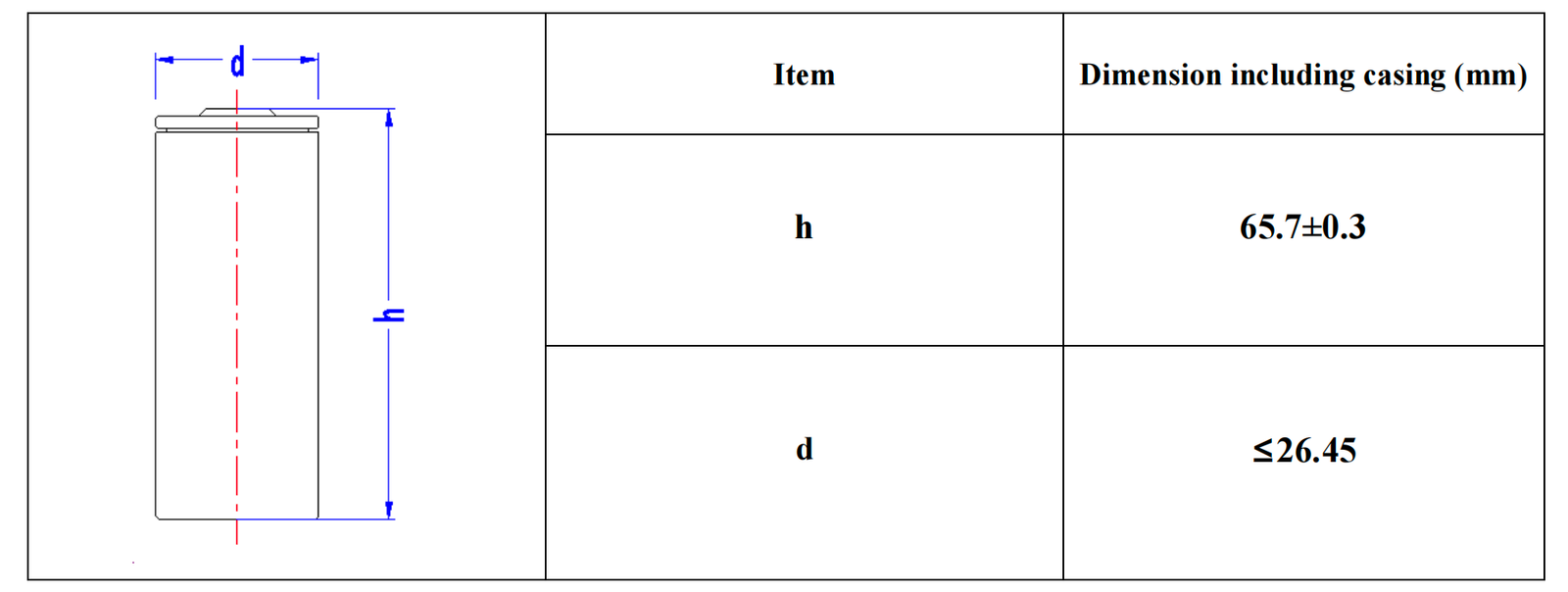

Weight |
Approx 83.5g |
including casing |
More, pls contact us to get detailed specifications!
- High Safety
- High Energy Density
- Long Cycle Life
- Excellent Thermal Stability and Safety
- Faster Charging Capabilities
- High Current Discharge Capability
- Environmental Friendliness
- Wide Operating Temperature Range
- Cost-Effectiveness
26650 LiFePO4 Cell is a versatile battery with a wide range of applications, including electric vehicles, energy storage, renewable energy systems, industrial equipment, portable power systems, and more. Its safety, long lifespan, and energy efficiency make it a preferred choice in many industries.
Home Solar Energy Storage
Solar Lightings
Protable Power Bank
Electric Two-Wheeler Vehicle(2W-EV)
Automated Guided Vehicle (AGV)
Golf Cart
- Products Certifications: CCC/BIS/IS16893-2/3/CE/Rohs/Reach/PSE/UL1642/UL1973/ BMSI/CB IEC62133/CB IEC62619/UN38.3/MSDS
- Factory Certifications: 1, Quality Management System: ISO9001 Quality System / IATF16949 Quality System 2,Environmental Health System: ISO14001 & ISO45001 Environmental and Occupational Health Management Systems. 3,Green and Low-Carbon Certification: ISO14064 standards
| Model | Nominal Voltage(V) | Nominal Capacity(mAh) | Charge Current(Max) | Discharge Current (Max) | Indepance (mΩ) | Max Size(mm) | Weight(g) |
|---|---|---|---|---|---|---|---|
18650 |
3.2 |
1100 |
5C |
30C |
≤18 |
18.35*65.3 |
39.5 |
18650 |
3.2 |
1600 |
1C |
3C |
≤40 |
18.35*65.3 |
39.5 |
18650 |
3.2 |
1800 |
1C |
3C |
≤40 |
18.35*65.3 |
41.5 |
18650 |
3.2 |
2200 |
1C |
3C |
≤25 |
18.35*65.3 |
43 |
26650-3000 |
3.2 |
3000 |
3C |
10C |
≤15 |
26.15*65.6 |
81.5 |
26650-3400 |
3.2 |
3400 |
1C |
3C |
≤25 |
26.15*65.6 |
83 |
26650-3600 |
3.2 |
3600 |
1C |
3C |
≤25 |
26.15*65.6 |
84 |
26650-3800 |
3.2 |
3800 |
1C |
3C |
≤20 |
26.15*65.6 |
87.5 |
26650-4000 |
3.2 |
4000 |
1C |
3C |
≤20 |
26.15*65.6 |
88 |
26700-4000 |
3.2 |
4000 |
2C |
3C |
≤20 |
26.6*71.2 |
90 |
26700-5000 |
3.2 |
5000 |
1C |
2C |
≤20 |
26.6*71.2 |
95 |
32700-6000 |
3.2 |
6000 |
1C |
3C |
≤8 |
32.5*70.9 |
145 |
327000-6700 |
3.2 |
6700 |
1C |
1C |
≤8 |
32.5*70.9 |
145 |
32140-15000mAh |
3.2 |
15000 |
1C |
2C |
≤3 |
33.2*140.3 |
273 |
