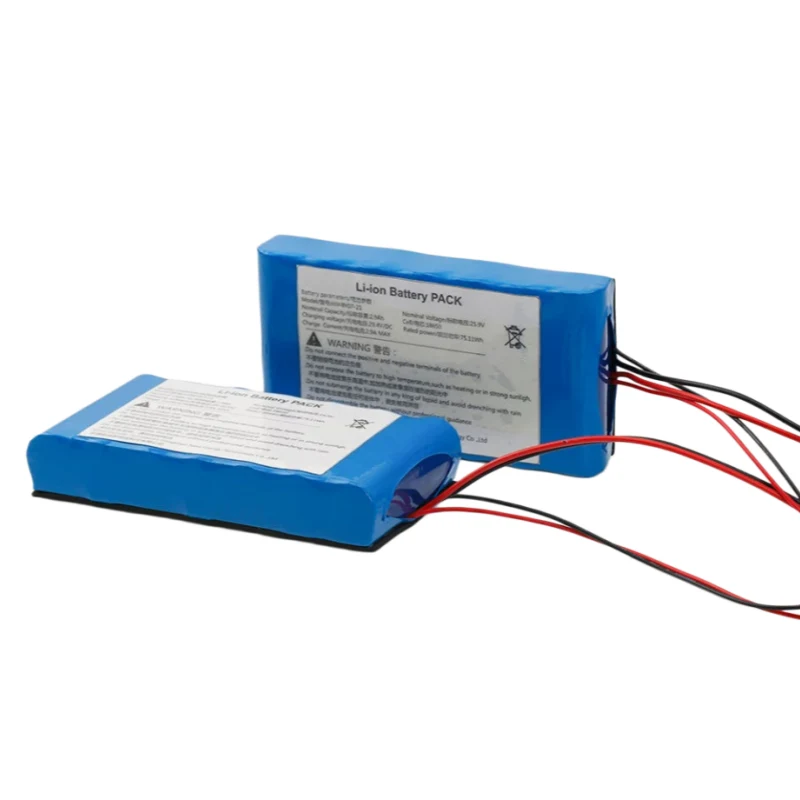

25.9V 2.9Ah 7S1P 18650 Li-ion Battery Pack for solar applications

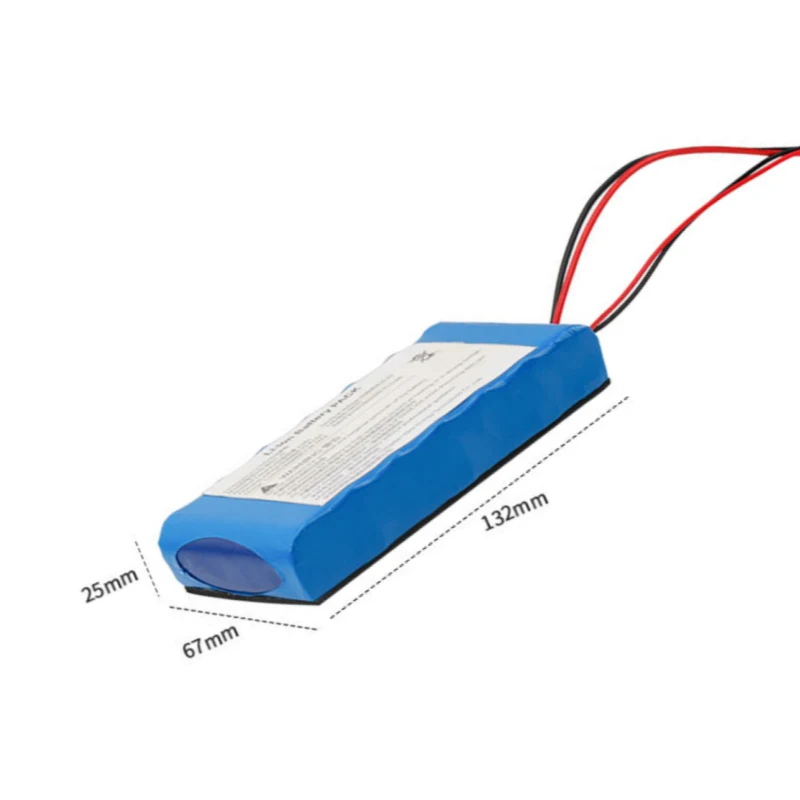

25.9V 2.9Ah 7S1P 18650 Li-ion Battery Pack for solar applications - Image 2
Li Ion Battery Pack

25.9V 2.9Ah 7S1P 18650 Li-ion Battery Pack for solar applications

Model: LNC-18650-7S1P2.9Ah

Nominal Voltage: 25.9V

Nominal Capacity:2.9Ah

Size: 132*67*25(mm)

Material: Li ion

Send Inquiry
Categories: , , ,

Technical Specifications

ItemSpecification
Nominal Voltage25.9V
Nominal Capacity2.9Ah
Rated Energy75.11Wh
Charging Voltage29.4V
Operating Voltage Range19.6V – 29.4V
Standard Charging Current0.2C
Maximum Charging Current2.9A
Standard Discharge Current0.2C
Max Continuous Discharge Current2.9A
Cutoff Discharge Voltage19.6V
Storage Temperature-20°C to 45°C
Charging Temperature0°C to 45°C
Discharge Temperature-20°C to 60°C
ConnectorOptions
External Dimensions132*67*25(mm)
Cell ConfigurationICR18650-2.9AH-7S1P

Product Advantages

24V Li-ion Battery Pack Solutions for Medium & High Power Applications

24V lithium-ion battery packs provide higher voltage output, stable power delivery, and flexible design options for industrial equipment, robotics, portable devices, and customized power systems.
With reliable 18650 lithium-ion cells and intelligent BMS protection, LNC battery packs deliver safe and efficient energy solutions.

High Voltage Output

24V lithium-ion battery packs provide higher voltage performance for equipment requiring stable and efficient power supply.

High Energy Density

18650 lithium-ion cells provide excellent energy density, helping reduce battery size and weight while maintaining sufficient runtime.

Stable Power Performance

Optimized cell configuration and BMS protection ensure reliable discharge performance for continuous operation.

Multiple Protection Functions

Integrated BMS provides protection against over-charge, over-discharge, over-current, short circuit, and temperature risks.

Flexible Configuration

Voltage, capacity, dimensions, connectors, and communication functions can be customized according to different applications.

Long Service Life

High-quality lithium-ion cells provide stable cycling performance and reliable operation for long-term applications.

Applications

24V lithium-ion battery packs are widely used in applications requiring compact design, high energy density, and reliable power output.

Industrial Equipment

Power supply solutions for industrial devices, automation equipment, and control systems.

AGV & Robotics

Suitable for AGV robots, mobile robots, and intelligent equipment requiring reliable energy supply.

Portable Power Equipment

Used in portable devices, inspection equipment, and outdoor power solutions.

Medical Equipment

Provides stable power for medical and healthcare equipment applications.

Custom Li-ion Battery Pack Solutions

Customized 24V Lithium-ion Battery Pack Solutions

LNC provides customized 24V lithium-ion battery pack solutions based on different power requirements.
Voltage, capacity, current output, dimensions, connectors, and BMS functions can be designed according to your equipment requirements.

Request A Quote

Request Your Customized 24V Li-ion Battery Pack Solution

Looking for a reliable 24V lithium-ion battery pack for your equipment or project?
Provide your battery requirements, including voltage, capacity, dimensions, current output, and application details.
Our battery engineers will help design a suitable customized solution.

✓ Custom Voltage & Capacity

✓ High Current Battery Design

✓ OEM Battery Pack Support

✓ Industrial Applications

Send Your Inquiry

Please share your required voltage, capacity, battery size, discharge current, connector type, and application.
