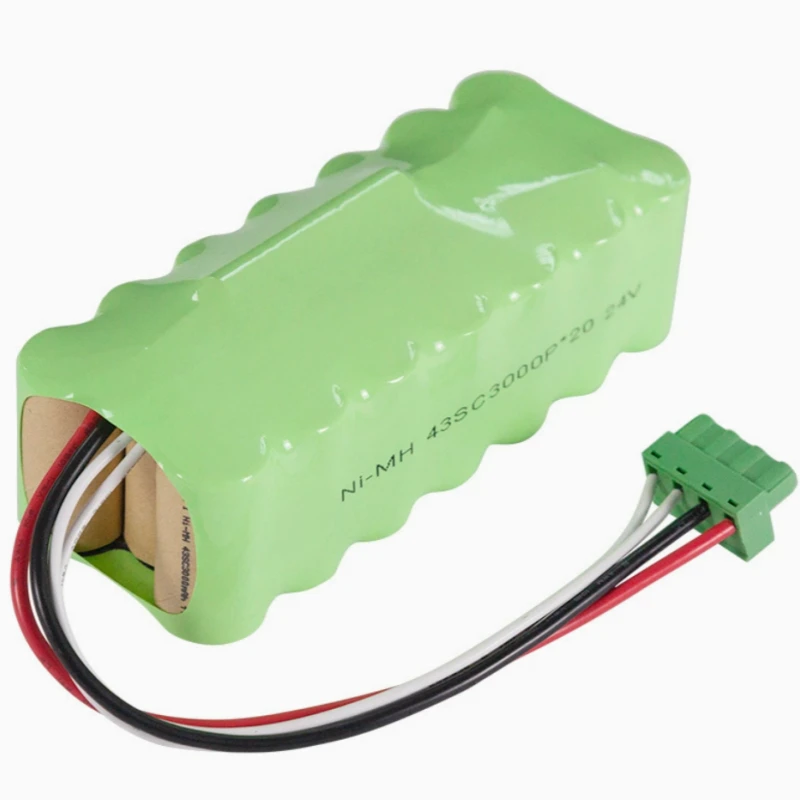

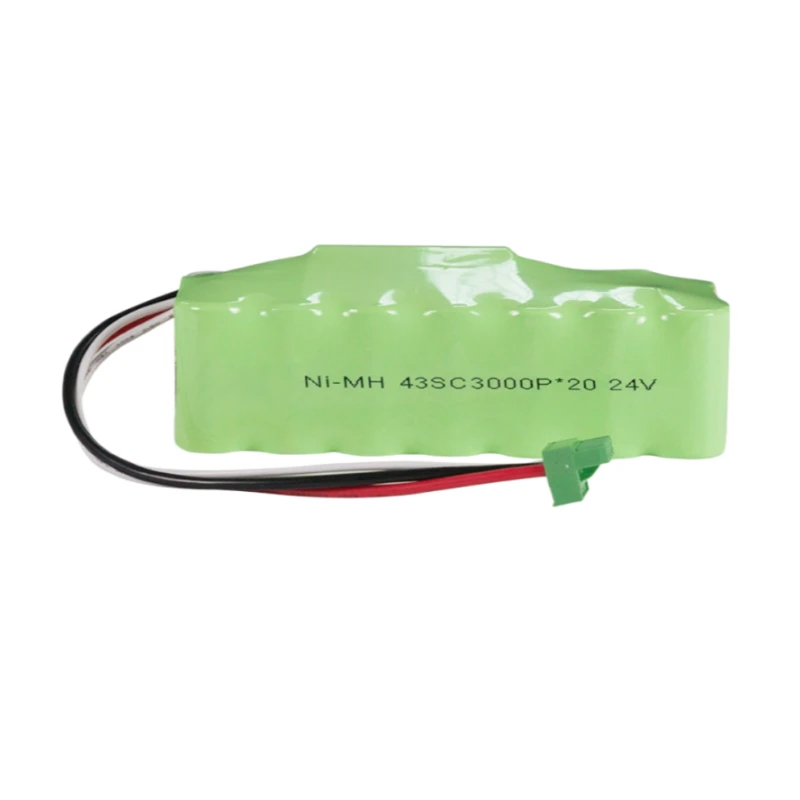

24V 3000mAh NiMH Battery Pack 20S1P SC Cells for Elevator Backup Power
Model: LNC-NiMh-SC3000mAh ×20
Voltage: 24V
Capacity: 3000mAh
Dimension: Max. 168 × 68 × 58 mm (Customizable)
Features:
- Long cycle life >1000 cycles
- Stable and safe NiMH rechargeable technology
- Wide operating temperature range (-20°C to +50°C)
- Compact design for backup power applications
- Custom connectors, wiring, and protection options available
Product Specification
| Specification | Details |
|---|---|
| Battery Type | NiMH Rechargeable Battery Pack |
| Cell Model | LNC-43SC3000 |
| Cell Voltage / Capacity | 1.2V / 3000mAh |
| SC Cell Capacity Range | 1500~3000mAh |
| Cell Dimension | Height: 41.5-43.0mm, Diameter: 21.5-22.5mm |
| Initial Internal Resistance | Approx. 8mΩ |
| Configuration | 20S1P (20 Cells in Series) |
| Nominal Voltage | 24V |
| Nominal Capacity | 3000mAh |
| Battery Pack Dimension | Max. 168 × 68 × 58mm (Customizable) |
| Cycle Life | >1000 Cycles (Cell Level) |
| Charging Temperature | 0°C ~ 45°C |
| Discharging Temperature | -20°C ~ +50°C |
| Standard Connector | Wires with Terminals (Customized Available) |
| Protection Function | Optional Overcharge, Over-discharge, Over-current and Temperature Protection |
Product Advantages
- High Capacity NiMH Battery Solution: Built with high-quality SC type NiMH cells, providing a stable 24V output and 3000mAh capacity for reliable backup power applications.
- Long Cycle Life: The battery pack supports over 1000 charge and discharge cycles at the cell level, ensuring excellent durability and long service life.
- Stable and Safe Performance: NiMH chemistry offers excellent safety, thermal stability, and reliable performance under various operating conditions.
- Wide Operating Temperature Range: Designed to operate reliably in temperatures from -20°C to +50°C, suitable for industrial and backup power environments.
- Compact 20S1P Configuration: The 20-cell series design provides a 24V nominal voltage output while maintaining a compact battery pack structure.
- Flexible Customization: Supports customized dimensions, connectors, wiring, protection functions, and battery structures to meet different application requirements.
- Multiple Safety Protections: Optional protection features include overcharge, over-discharge, over-current, and temperature protection for enhanced system safety.
- Reliable Backup Power Application: Ideal for elevator emergency backup systems and other industrial equipment requiring stable and dependable energy supply.
Applications
Our NiMH rechargeable batteries are widely used in consumer electronics, industrial equipment, backup power systems and portable devices. With excellent cycle life, stable discharge performance and reliable safety, NiMH battery solutions are suitable for various applications.
Smart Meter
Reliable NiMH battery backup power for smart electricity meters, gas meters and water meters, ensuring stable operation during power interruption.
Emergency Lighting
Long-life rechargeable NiMH battery solutions for emergency lights, safety lighting and standby power systems.
Industrial Equipment
Stable NiMH battery packs for industrial instruments, control systems, automation equipment and backup power applications.
Medical Devices
Safe and reliable rechargeable battery solutions for portable medical equipment and healthcare devices.
Security Systems
NiMH battery packs provide dependable backup power for security systems, alarm equipment and monitoring devices.
Portable Electronics
Suitable for remote controls, wireless devices, electronic toys, flashlights and other portable applications.
Customization Options
We provide professional OEM and ODM NiMH battery solutions
to meet different application requirements. Battery capacity, voltage, size,
terminal type, connector and wire length can be customized according to customer needs.
| Customization Item | Description |
|---|---|
| Capacity Customization | Different capacity options are available based on application requirements, including low capacity and high capacity NiMH battery solutions. |
| Voltage Configuration | Customized voltage solutions from single cell 1.2V to multi-cell battery packs such as 3.6V, 4.8V, 6V, 7.2V, 12V and other configurations. |
| Terminal & Connector Options | Various terminals, connectors and contact designs are available to fit different equipment requirements. |
| Wire Length Customization | Customized cable length, wire specifications and connection methods are available. |
| Battery Pack Structure | Support customized series and parallel configurations, battery arrangement and pack dimensions. |
| OEM Label & Packaging | OEM branding, labeling and customized packaging solutions are available for bulk orders. |
For customized NiMH rechargeable battery packs, please contact our sales team with your specifications and application requirements.
