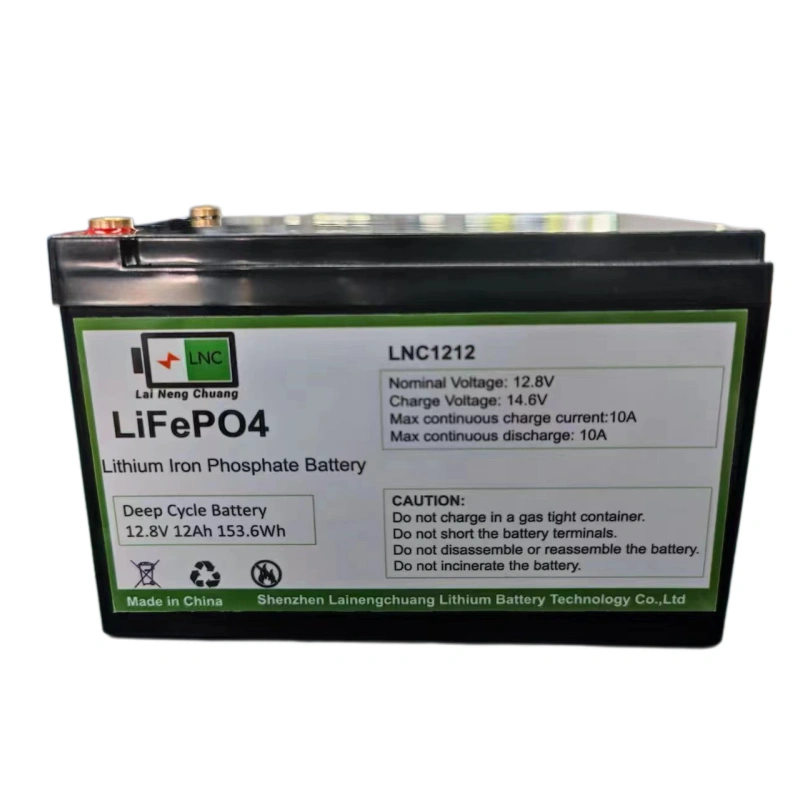

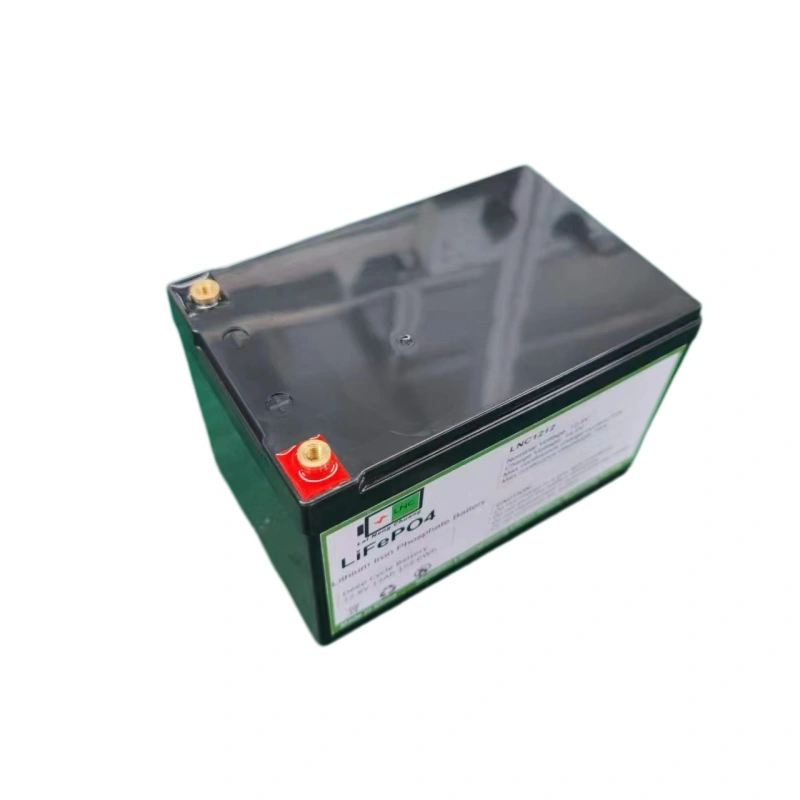

12.8V 12Ah LiFePO4 Battery Pack 153.6Wh with 2000+ Cycles
Model: LNC-LFP12.8V12Ah |
Voltage: 12.8V |
Capacity: 12Ah |
Energy: 153.6Wh |
Size: 151 × 99 × 99 mm
Compact LiFePO4 battery pack with 2,000+ cycle life, reliable discharge performance, and a wide operating temperature range.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | LNC-LFP12.8V12Ah |
| Battery Type | Lithium Iron Phosphate Battery (LiFePO4) |
| Nominal Capacity | 12Ah |
| Nominal Voltage | 12.8V |
| Voltage Range | 10–14.6V |
| Cell Voltage Range | 2.5–3.65V |
| Nominal Energy | 153.6Wh |
| Max. Charge Current | 10A |
| Max. Continuous Discharge Current | 10A |
| Peak Discharge Current | 20A |
| Cycle Life | Over 2,000 cycles |
| Dimensions | 151 × 99 × 99 mm |
| Weight | Approx. 1.6 kg |
| Cooling Method | Natural Cooling |
| Humidity | 10%–90% RH |
| Working Temperature | Charge: 0°C to 45°C; Discharge: -20°C to 60°C |
| Storage Temperature | 0°C to 45°C |
Product Features
Compact 12.8V LiFePO4 Battery Pack
The LNC-LFP12.8V12Ah is a compact 12.8V 12Ah LiFePO4 battery pack delivering 153.6Wh of nominal energy. Its compact 151 × 99 × 99 mm design makes it suitable for equipment where installation space is limited.
Long Cycle Life
Built around lithium iron phosphate battery technology, this rechargeable battery pack provides over 2,000 cycles for applications requiring frequent charging and discharging.
Reliable Discharge Performance
The battery supports up to 10A continuous discharge and 20A peak discharge current, providing additional power capability for equipment with short-duration load demands.
Wide Operating Temperature Range
The battery supports discharge operation from -20°C to 60°C and charging from 0°C to 45°C, making it suitable for indoor and outdoor equipment exposed to changing environmental conditions.
Lightweight and Space-Saving Design
With a weight of approximately 1.6 kg, this 12.8V lithium battery offers a practical balance between energy capacity, portability, and installation space.
Applications
Backup Power
Suitable for backup and emergency power systems requiring a compact rechargeable battery.
Solar Energy Storage
Can be integrated into small solar power and off-grid energy storage systems.
Portable Equipment
A lightweight battery solution for portable electronic and DC-powered equipment.
Security & Monitoring
Suitable for security systems, monitoring equipment, and remote electronic devices.
Outdoor Equipment
Designed for outdoor equipment requiring reliable rechargeable power across a wide temperature range.
Industrial Electronics
Suitable for industrial controls, communication equipment, and customized battery-powered devices.
Request a Quote
Looking for a 12.8V 12Ah LiFePO4 battery pack for your project?
Contact LNC Batteries for pricing, battery specifications, samples, and customized battery solutions.
Please provide your required quantity, application, and any specific battery requirements. Our team will get back to you with a suitable solution.
