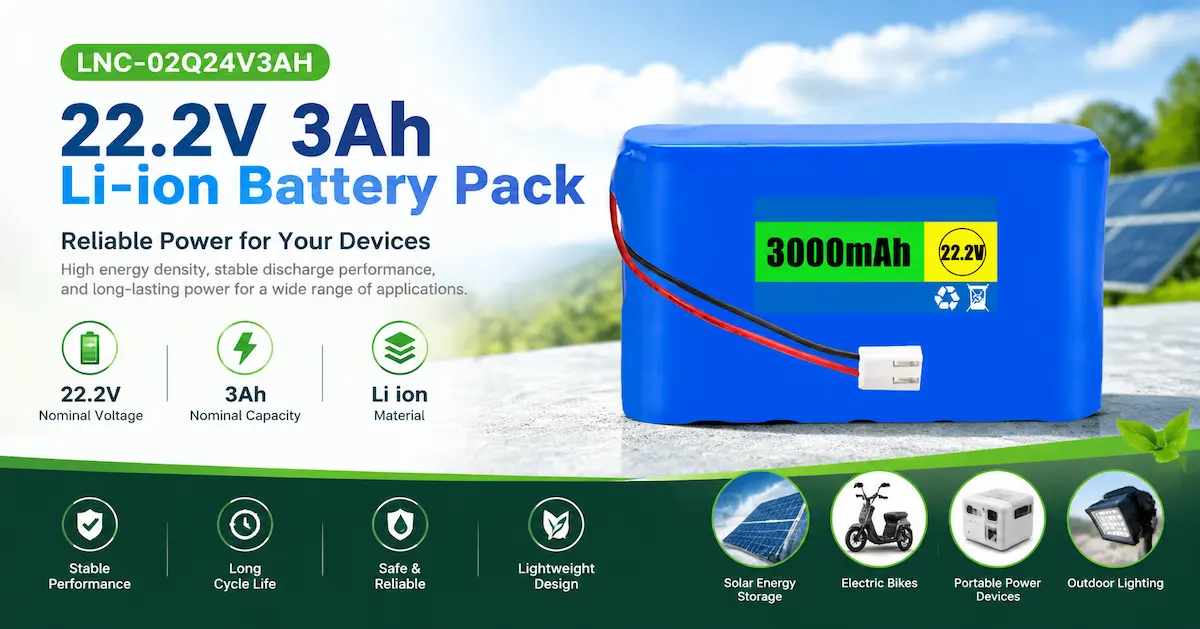

The 22.2V 3Ah 6S1P 18650 lithium-ion battery pack is a compact rechargeable power solution designed for electronic equipment, portable devices, industrial instruments, and other applications requiring a stable DC power supply. With a nominal voltage of 22.2V, a capacity of 3Ah, and a rated energy of 66.6Wh, this battery pack combines a compact form factor with practical energy storage capabilities.
Built around a six-series, one-parallel (6S1P) 18650 lithium-ion cell configuration, the battery is designed for applications compatible with its operating voltage range of 16.8V to 25.2V. A battery management system (BMS), when configured as part of the finished pack, can provide essential electrical protection and help manage charging and discharging conditions.
With external dimensions of 114 × 72 × 20 mm and customizable connector options, this 22.2V rechargeable battery pack can be evaluated for integration into equipment with specific installation and electrical requirements. For detailed product information, visit the 22.2V 3Ah 6S1P 18650 Li-ion Battery Pack with BMS product page.
Product Overview of the 22.2V 3Ah 18650 Battery Pack
The LNC-02Q24V3AH is a 22.2V lithium-ion battery pack developed for applications that need a rechargeable energy source in a relatively slim package. Its 3Ah capacity and 66.6Wh rated energy make it suitable for evaluating in compact equipment where battery size, voltage compatibility, and dependable power delivery are important design considerations.
The 6S1P configuration consists of six lithium-ion cells connected in series, with one cell in each series position. This arrangement provides the pack’s nominal voltage, while the capacity depends on the specifications of the individual cells used in the assembly.
- Model: LNC-02Q24V3AH
- Nominal voltage: 22.2V
- Nominal capacity: 3Ah (3000mAh)
- Rated energy: 66.6Wh
- Battery chemistry: Lithium-ion (Li-ion)
- Cell configuration: 6S1P 18650
- External dimensions: 114 × 72 × 20 mm
- Connector: Customization available
Technical Specifications of the 22.2V 3Ah Li-ion Battery
The following table provides the key electrical, charging, discharging, mechanical, and temperature specifications for the LNC-02Q24V3AH battery pack.
Electrical and Battery Configuration
| Parameter | Specification |
|---|---|
| Model | LNC-02Q24V3AH |
| Battery Chemistry | Lithium-ion (Li-ion) |
| Nominal Voltage | 22.2V |
| Nominal Capacity | 3Ah / 3000mAh |
| Rated Energy | 66.6Wh |
| Operating Voltage Range | 16.8V–25.2V |
| Cell Configuration | 6S1P |
| Cell Type | 18650 lithium-ion cells |
Charging and Discharging Specifications
| Parameter | Specification |
|---|---|
| Charging Voltage | 25.2V |
| Standard Charging Current | 0.2C (0.6A) |
| Maximum Charging Current | 1C (3A) |
| Standard Discharge Current | 0.2C (0.6A) |
| Maximum Continuous Discharge Current | 1C (3A) |
| Discharge Cut-Off Voltage | 16.8V |
Charging and current note: The current values in amperes are calculated from the specified C-rates and nominal capacity of 3Ah. Confirm the actual charging and continuous discharge limits with the final cell specifications and BMS ratings. Use a compatible 25.2V lithium-ion charger designed for a six-series-cell battery pack.
Mechanical Specifications
| Parameter | Specification |
|---|---|
| External Dimensions | 114 × 72 × 20 mm |
| Connector | Customizable according to application requirements |
| Cell Configuration | ICR18650-3AH-6S1P (as specified) |
| Battery Management System | BMS-equipped pack configuration; confirm protection features and ratings |
Operating and Storage Temperatures
| Parameter | Temperature Range |
|---|---|
| Charging Temperature | 0°C to 45°C |
| Discharging Temperature | -20°C to 60°C |
| Storage Temperature | -20°C to 45°C |
Temperature limits should be followed according to the final cell manufacturer’s instructions and the completed battery pack specifications. Actual performance may vary with load, ambient temperature, charging conditions, and battery age.
Key Advantages of the 22.2V 3Ah Rechargeable Battery Pack
Compact and Slim Battery Design
With listed dimensions of 114 × 72 × 20 mm, this 22.2V 3Ah lithium-ion battery pack can be considered for equipment with limited installation space. Its relatively slim profile may help product designers plan battery placement in portable instruments, electronic devices, and compact equipment enclosures.
Practical Energy Capacity
The rated energy of 66.6Wh provides a useful reference when estimating the power requirements of compatible equipment. Actual runtime depends on the device’s average power consumption, operating conditions, conversion efficiency, and the usable energy available from the battery.
Defined Voltage and Charging Parameters
The battery has a nominal voltage of 22.2V, a charging voltage of 25.2V, and a specified operating voltage range of 16.8V to 25.2V. These parameters help engineers assess electrical compatibility during product development and system integration.
BMS Protection for Battery Management
A properly specified battery management system can help protect a lithium-ion battery pack against conditions such as overcharging, excessive discharge, overcurrent, and short circuits. Temperature protection and other monitoring functions depend on the actual BMS design. Protection thresholds should be matched to the selected cells and the target application’s electrical requirements.
Custom Connector Options
Different devices may require different connector types, cable lengths, and wiring arrangements. Connector customization can help simplify battery integration, provided that the selected components meet the required current rating, polarity, mechanical fit, and environmental conditions.
Flexible Integration into OEM Equipment
Battery selection is influenced by more than nominal voltage and capacity. Equipment designers should also consider peak current demand, charging time, installation space, operating temperature, and protection requirements. These factors can be reviewed when evaluating the battery for an OEM or custom equipment project.
Applications of the 22.2V 3Ah 18650 Lithium-Ion Battery
This rechargeable 22.2V battery pack may be suitable for applications that match its voltage range, current capability, dimensions, and safety requirements.
Industrial Instruments and Automation Devices
Selected industrial instruments, portable control devices, and automation equipment may use a compact lithium-ion battery to support mobile operation or provide an independent power source. Compatibility should be checked against the device’s normal and peak current requirements.
Robotics and Intelligent Equipment
Compact robots, mobile electronic platforms, and intelligent devices may require rechargeable battery packs for onboard electronics, sensors, and control systems. For motor-driven applications, engineers should verify startup current, load variation, and required operating duration before choosing a battery.
Portable Electronic and Inspection Equipment
Portable testing instruments, inspection tools, and field-service electronics can benefit from a battery pack with a defined voltage range and compact dimensions. Connector compatibility and the power profile of the connected equipment are important factors in determining suitability.
Specialized Healthcare Equipment
Some portable healthcare devices may use lithium-ion battery packs when their electrical, safety, and regulatory requirements are met. Medical applications require product-specific verification and compliance assessment; the battery specifications alone do not establish medical-device suitability.
Customized Li-ion Battery Pack Solutions for OEM Projects
LNC provides lithium-ion battery solutions for applications with different voltage, capacity, size, and power requirements. For projects that need a customized battery pack, the design process should begin with the equipment’s electrical specifications and available installation space.
Depending on technical feasibility, project requirements can include:
- Voltage and capacity configuration: Evaluation of battery requirements based on the target device and intended runtime.
- Battery dimensions: Review of pack dimensions and layout against enclosure constraints.
- Current output: Assessment of continuous and peak current demand.
- Connector and wiring options: Selection based on mechanical fit, polarity, and electrical ratings.
- BMS configuration: Review of protection thresholds and current limits for the intended application.
- OEM integration support: Technical evaluation of battery requirements for equipment manufacturers and product development teams.
For additional information about LNC’s battery technologies, including lithium-ion and other battery chemistries, visit the LNC Battery official website.
Request a Quote for a 22.2V Lithium-Ion Battery Pack
Looking for a 22.2V 3Ah 18650 lithium-ion battery pack for your equipment or OEM project? Providing accurate technical requirements helps determine whether the standard configuration is suitable or whether a customized solution should be evaluated.
When requesting a quotation, consider providing the following information:
- Required nominal voltage and battery capacity
- Continuous and peak discharge current
- Required operating time and charging conditions
- Available battery compartment dimensions
- Connector type, cable length, and wiring requirements
- Operating temperature and intended application
To review the existing configuration, visit the 22.2V 3Ah 6S1P 18650 battery product page. For project-specific requirements, contact LNC through its official website to discuss technical feasibility and customization options.
Frequently Asked Questions About the 22.2V 3Ah Li-ion Battery
1. What does 6S1P mean in a 22.2V 3Ah battery pack?
6S1P means that six lithium-ion cells are connected in series, with one cell in each series position. A typical six-series lithium-ion configuration provides a nominal voltage of 22.2V and a charging voltage of 25.2V. The capacity of this pack is specified as 3Ah.
2. How much energy does a 22.2V 3Ah lithium-ion battery provide?
The battery has a rated energy of 66.6Wh, calculated by multiplying its nominal voltage of 22.2V by its capacity of 3Ah. Actual usable energy and operating time depend on the connected load, temperature, discharge limits, and battery condition.
3. Which charger should be used for a 22.2V 3Ah 6S1P battery?
A compatible lithium-ion charger with a 25.2V charging output is specified for this battery configuration. The charger’s current rating and charging profile must also match the battery manufacturer’s requirements. Do not use a charger designed for a different battery chemistry or series configuration.
4. Does this 18650 battery pack include BMS protection?
The product is described as a battery pack with BMS. However, the exact protection functions, current limits, and temperature-monitoring capabilities should be confirmed for the supplied configuration. A BMS should be selected according to the cell specifications and the requirements of the connected equipment.
5. Can the 22.2V 3Ah battery dimensions and connector be customized?
The listed external dimensions are 114 × 72 × 20 mm, and connector customization is indicated in the product specifications. Any changes to dimensions, wiring, or pack configuration are subject to technical feasibility and may affect the final electrical and mechanical design.
For product details and configuration inquiries, visit the LNC 22.2V 3Ah 6S1P 18650 Li-ion Battery Pack with BMS.
