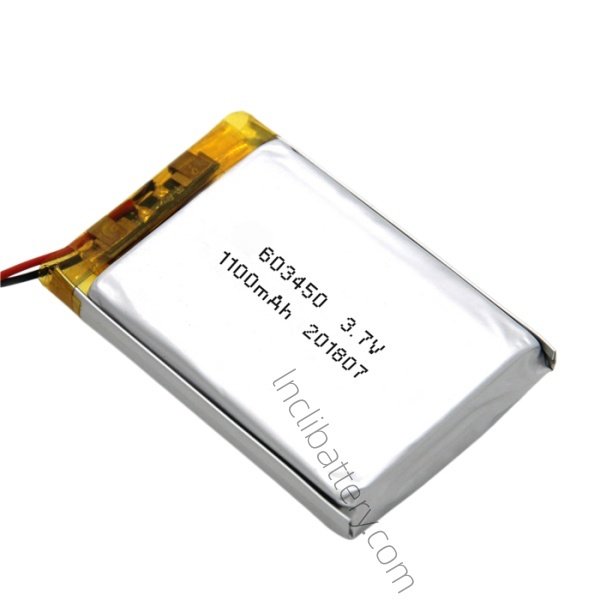

3.7V 1100mAh 603450 Rechargeable LiPo Battery for Portable Medical Devices
- Model: LNC603450-1100
- Voltage: 3.7V
- Capacity: 1100mAh
- Cell size: 6*34*50(mm)
- Battery with PCM: 6.2*34.5*52(mm)
Product Overview
The LNC603450 3.7V 1100mAh Li-Polymer Battery is a compact rechargeable pouch cell designed for portable electronics, wearable devices, and IoT applications.
Featuring high energy density, stable discharge performance, and flexible integration capability, this battery is suitable for compact electronic products requiring reliable and lightweight power solutions.
Optional PCM/PCB protection solutions and connector customization are available for OEM/ODM projects.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | LNC603450 |
| Nominal Capacity | 1100mAh |
| Nominal Voltage | 3.7V |
| Charge Cut-off Voltage | 4.2V |
| Standard Charge Current | 0.2C |
| Max Continuous Discharge | 1C |
| Dimensions | 6.2 × 34.5 ×52mm (PCM included) |
| Cycle Life | ≥300 cycles (≥85% capacity retention) |
Explore more
LiPo Battery Models
including ultra thin, slim, standard, high capacity, cylindrical and custom shaped LiPo batteries.
Safety Protection Options
- Overcharge Protection
- Over-discharge Protection
- Overcurrent Protection
- Short Circuit Protection
- Optional PCM / PCB Protection Integration
Customization Options
Key Features
Applications
Wearable Devices
Smart Rings
IoT Sensors
GPS Trackers
Portable Electronics
Medical Devices
Engineer Notes
For OEM/ODM projects, it is recommended to confirm:
- Available installation space (L × W × T)
- Peak current requirement
- Continuous discharge current
- Application operating environment
Engineering samples are available for mechanical and electrical validation.
Request Samples or Custom Battery Solution
Please provide your required battery size, capacity target, current requirement, and application details.
Our engineering team will recommend the most suitable battery configuration for your project.
