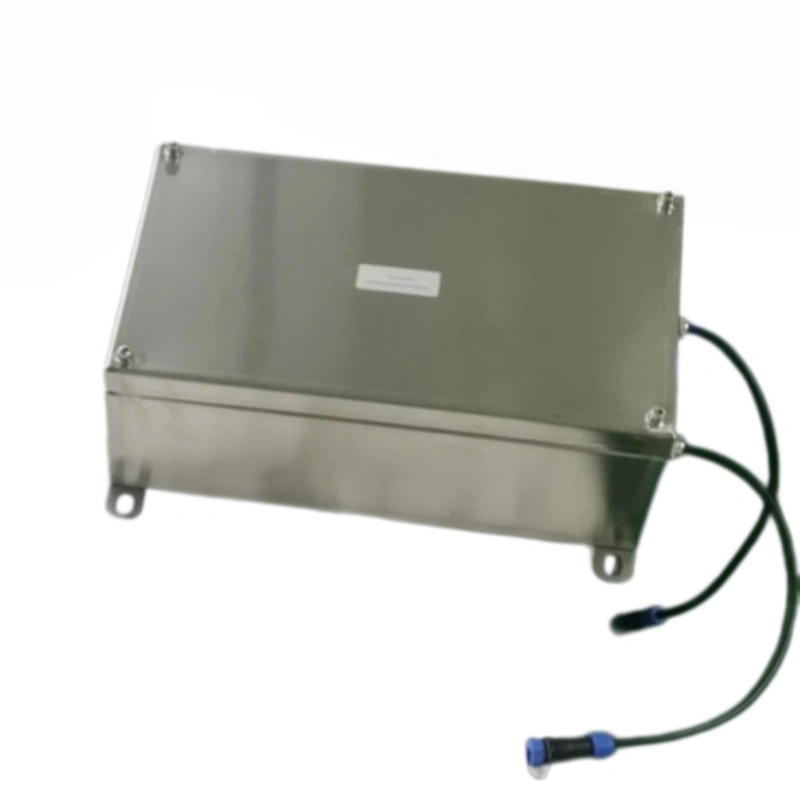

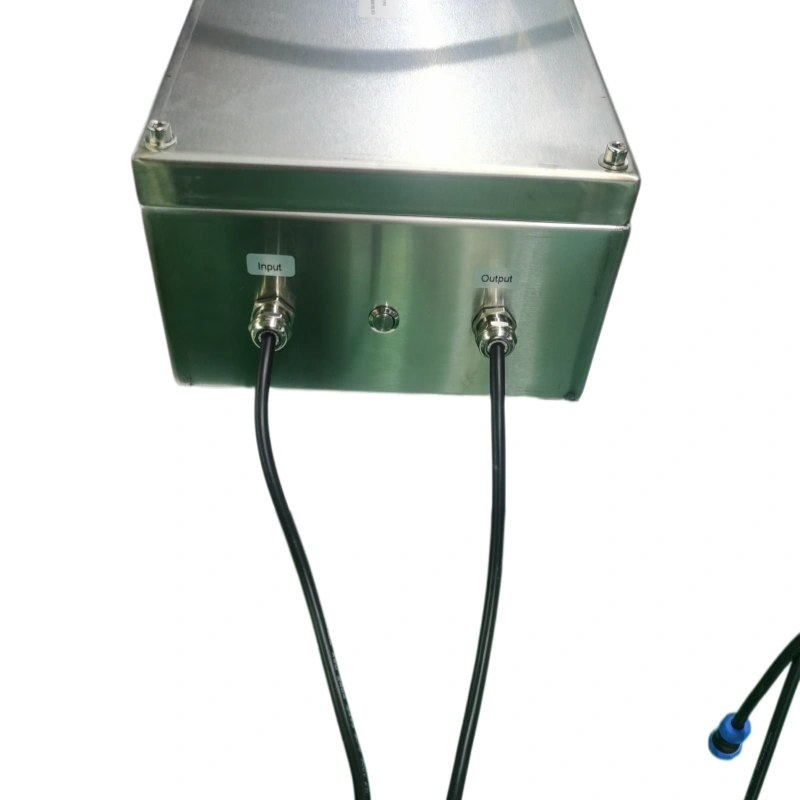

12.8V 30Ah LiFePO4 Battery with 10A Solar Controller for Solar Light System
Model: LNC-LFP12.8V30Ah-SC10 |
Voltage: 12.8V |
Capacity: 30Ah |
Size: 340 × 200 × 115 mm
All-in-one LiFePO4 battery and 10A solar controller designed for solar lighting systems, featuring over 2,000 cycles, adjustable load modes, and a durable 304 stainless steel enclosure.
Technical Specifications
Electrical Characteristics
| Parameter | Specification |
|---|---|
| Nominal Voltage | 12.8V |
| Nominal Capacity | 30Ah |
| Capacity @15A | 120 minutes |
| Self Discharge | <3% per month |
| Cycle Life | >2,000 cycles |
Discharge Characteristics
| Parameter | Specification |
|---|---|
| Max. Continuous Discharge Current | 10A |
| Recommended Low Voltage Disconnect | 10.8V |
| BMS Discharge Voltage Cut-Off | 10V |
| Reconnect Voltage | 10.8V |
| Short Circuit Protection | 250–450 µs |
Temperature Characteristics
| Parameter | Specification |
|---|---|
| Discharge Temperature | -20°C to 60°C |
| Charge Temperature | 0°C to 55°C |
| Storage Temperature | -10°C to 45°C |
| BMS High Temperature Cut-Off | 75°C |
| Reconnect Temperature | 53°C |
Mechanical Characteristics
| Parameter | Specification |
|---|---|
| Cell Type | LiFePO4 |
| Dimensions | 340 × 200 × 115 mm (excluding ears) |
| Weight | Approx. 7.2 kg |
| Case Material | 304 Stainless Steel |
Charge Characteristics
| Parameter | Specification |
|---|---|
| Recommended Charge Current | 6A |
| Maximum Charge Current | 10A |
| Max. Charge Voltage | 14.6V |
| BMS Charge Voltage Cut-Off | 14.8V |
| Reconnect Voltage | 14.2V |
Solar Controller
| Parameter | Specification |
|---|---|
| Rated Charge Current | 10A |
| Rated Discharge Current | 10A |
| Max. PV Voltage | <25V (12V Solar System) |
| Working Mode | 24H: Load output 24 hours 1–23H: Load turns on after sunset and switches off after the selected number of hours 0H: Dusk to dawn |
Product Features
All-in-One Battery and Solar Controller
This integrated solution combines a 12.8V 30Ah LiFePO4 battery with a 10A solar controller in one enclosure, helping simplify system installation and reduce the number of separate components.
Designed for Solar Lighting Systems
Designed for 12V solar lighting applications, the integrated controller manages battery charging and load operation for standalone solar-powered lighting systems.
30Ah LiFePO4 Battery Capacity
The 12.8V 30Ah LiFePO4 battery provides 384Wh of nominal energy, offering a practical energy storage solution for solar street lights, garden lights, and other standalone lighting equipment.
Over 2,000 Cycle Life
Built with LiFePO4 battery technology, the battery is rated for more than 2,000 cycles, supporting repeated daily charge and discharge operation in solar lighting systems.
Adjustable Load Working Modes
The solar controller supports 24-hour operation, 1–23 hour timed operation after sunset, and dusk-to-dawn operation, allowing the lighting schedule to be matched to different project requirements.
Durable 304 Stainless Steel Enclosure
The battery and controller are integrated into a 304 stainless steel enclosure, providing a durable housing solution for solar lighting equipment.
Applications
Solar Street Lights
Suitable for standalone solar street lighting systems requiring integrated battery storage and charge control.
Solar Garden Lights
Designed for solar-powered garden, pathway, landscape, and decorative lighting applications.
Off-Grid Outdoor Lighting
Provides battery energy storage and solar charging control for lighting installations operating independently from the electrical grid.
Remote Area Lighting
An integrated battery solution for lighting projects in remote locations where grid power is unavailable or difficult to access.
Solar Pathway Lighting
Suitable for standalone pathway and pedestrian lighting systems using solar energy for daily charging and nighttime illumination.
Custom Solar Lighting Projects
Suitable for customized solar lighting projects requiring specific battery capacity, controller configuration, enclosure dimensions, or system requirements.
Request a Quote
Looking for a 12.8V 30Ah LiFePO4 battery with an integrated 10A solar controller for your solar lighting project?
Send us your required quantity, solar panel specifications, lighting load, installation requirements, and any customization needs. Our team can provide a suitable battery solution based on your project requirements.
