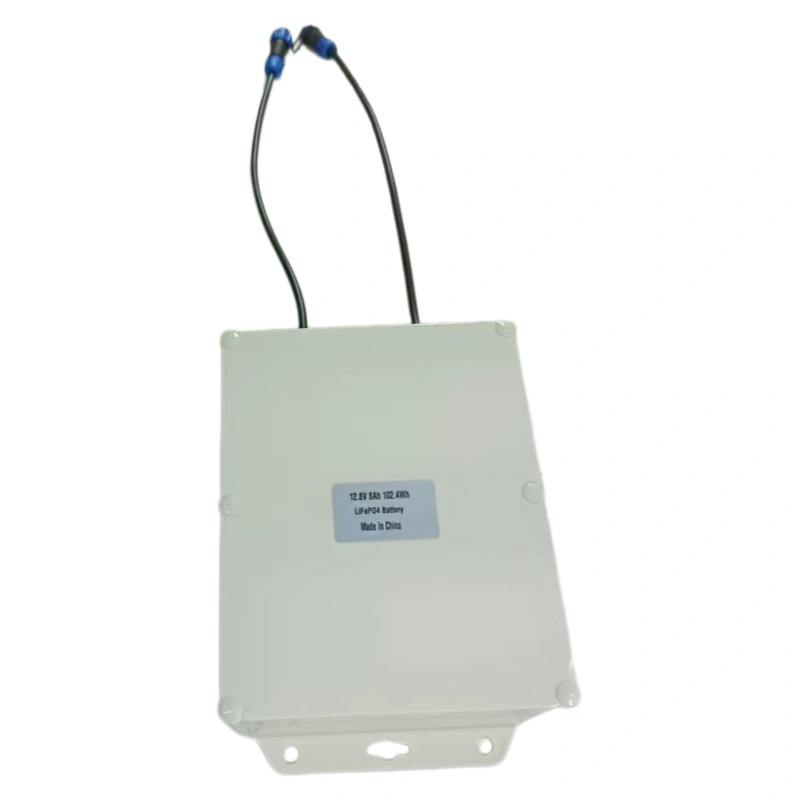

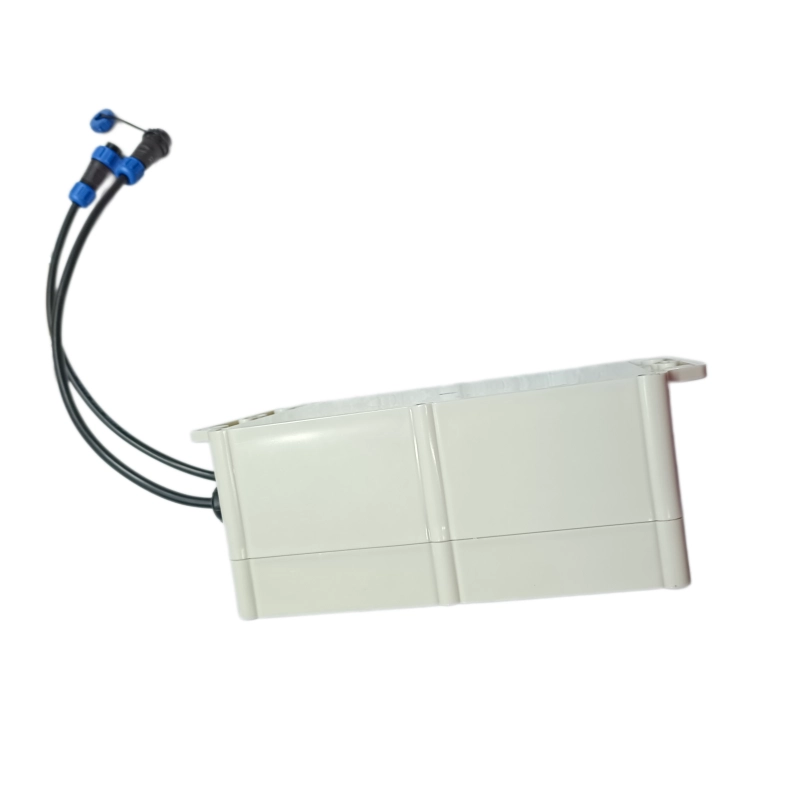

12.8V 12Ah LiFePO4 Battery with 10A Charge Controller for Solar Lighting
Model: LFP12.8V8Ah-SC10-ABS
Voltage: 12.8V
Capacity: 8Ah
Size: 202*162*88 mm
All-in-one LiFePO4 battery and 10A solar controller designed for solar lighting systems, featuring over 2,000 cycles, adjustable load modes, and a durable Fully New ABS enclosure.
Technical Specifications
Electrical Specifications
| Parameter | Specification |
|---|---|
| Nominal Voltage | 12.8V |
| Nominal Capacity | 8Ah |
| Capacity @4A | 120 min |
| Self Discharge | <3% per Month |
| Cycle Life | >2000 times |
Discharge Specifications
| Parameter | Specification |
|---|---|
| Max Continuous Discharge Current | 5A |
| Recommended Low Voltage Disconnect | 10V |
| BMS Discharge Voltage Cut-Off | 9.2V |
| Reconnect Voltage | 10.8V |
| Short Circuit Protection | 250-450 µs |
Temperature Specifications
| Parameter | Specification |
|---|---|
| Discharge Temperature | -20 to 60 ºC |
| Charge Temperature | 0 to 55 ºC |
| Storage Temperature | -10 to 45 ºC |
| BMS High Temperature Cut-Off | 75±5 ºC |
| Reconnect Temperature | 53 ±4 ºC |
Mechanical Specifications
| Parameter | Specification |
|---|---|
| Dimensions (L × W × H) | 202*162*88 mm (Not include ear) |
| Weight | 1.67 Kg |
| Case Materials | Fully New ABS |
| Cell Type | LiFePO4 |
Charge Specifications
| Parameter | Specification |
|---|---|
| Recommended Charge Current | 1.6A |
| Maximum Charge Current | 5A |
| Max Charge Voltage | 14.6V |
| BMS Charge Voltage Cut-Off | 14.8V |
| Reconnect Voltage | 14.0V |
Solar Charge Controller Specifications
| Parameter | Specification |
|---|---|
| Rated Charge Current | 10A |
| Rated Discharge Current | 10A |
| Max PV Voltage | 12V system <25V |
| Working Mode (Adjustable) | 【24H】Load output 24Hrs 【1~23H】Load on after sunset and close after setting hours. 【0H】Dusk to dawn |
Product Features
- 12.8V 8Ah LiFePO4 battery with integrated 10A solar charge controller
- LiFePO4 chemistry with a cycle life of over 2,000 cycles
- Built-in BMS provides overcharge, over-discharge, short circuit and high-temperature protection
- 10A rated charge and discharge current for solar lighting applications
- Adjustable 24-hour, timed and dusk-to-dawn load operating modes
- Wide discharge temperature range from -20°C to 60°C
- Compact 202*162*88 mm design, excluding mounting ears
- Fully new ABS housing for a practical and durable solar battery solution
- Suitable for solar street lighting, outdoor lighting and other off-grid applications
- OEM/ODM customization available for project requirements
Applications
- Solar street lighting systems
- Solar garden and pathway lights
- Solar outdoor lighting systems
- Solar security and surveillance lighting
- Remote-area lighting systems
- Off-grid solar lighting equipment
- Small solar energy storage systems
- Other 12V-class solar-powered devices
Request a Quote
Looking for a 12.8V 8Ah LiFePO4 battery with an integrated 10A solar controller for your solar lighting project?
Send us your required quantity, and any customization needs. Our team can provide a suitable battery solution based on your project requirements.
