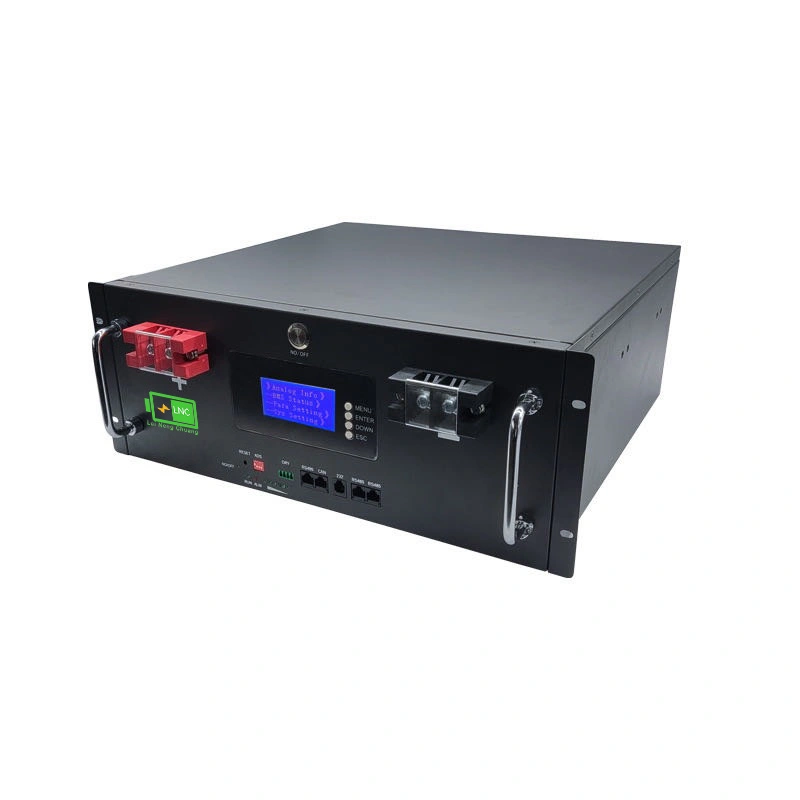

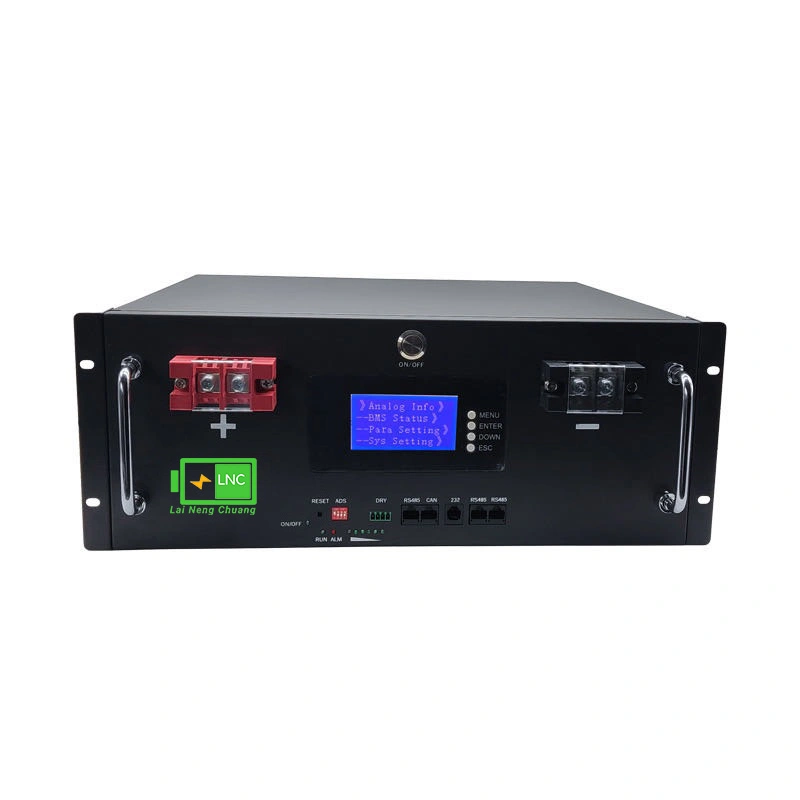

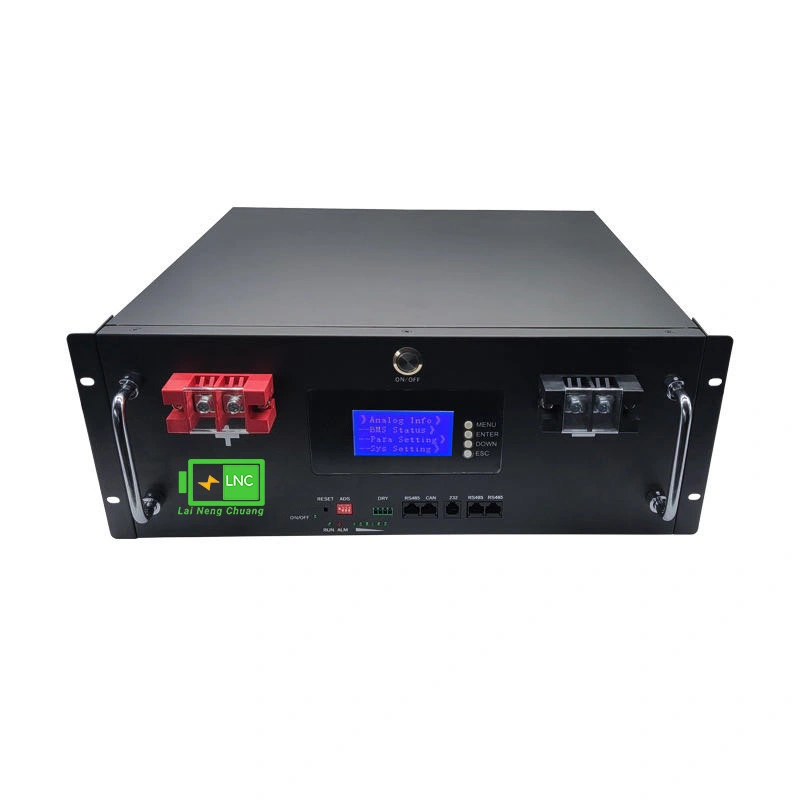

51.2V 100Ah LiFePO4 Battery
Model: LNC-LFP51.2V100AH
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Material: LFP
51.2V 100Ah LiFePO4 Battery
| Item | Specifications | Remark |
|---|---|---|
| Type | LiFePO4 Battery | |
| Model | LNC-LFP51.2V100Ah | |
| Nominal Voltage | 51.2V | 16S |
| Nominal Capacity | 100Ah | |
| Dimensions | 520*442*177(mm) | L*W*H |
| Cycle life | ≥2000 times | |
| Charge method | CC/CV mode | |
| Charge cut-off voltage | 58.4V | |
| Discharge cut-off voltage | 40V | |
| Standard charge current | 0.2C | |
| Standard discharge current | 0.2C | |
| Max charge current | 0.5C | |
| Max discharge current | 1C | |
| Peak current | 2C | |
| Recommended operation ambient temperature | Charge: 0~45℃, Discharge: -20~60℃. | |
| Storage Temperature | -20~ 45°C | |
| Communication ways | RS485/232/CAN |
High Security
Built-in BMS with multiple protections, real-time monitoring of data through communication functions.Standard Design
Maintenance-free design, suitable for communication cabinet use.Long Lifespan
80% DOD discharge depth, battery cycle life > 2000 times.High Consistency
Low internal resistance, good stability of the battery pack.Large Capacity
Battery packs can be connected in parallel to meet the demands of high-capacity applications.Communication Base Station/Home Energy Storage
Benefits of LiFePO4 Batteries
Safe: Less risk of fire or overheating.
Long Life: Lasts a long time with many charge cycles.
Reliable: Works well in different conditions.
High Power: Delivers energy quickly.
Works in Extreme Temperatures: Can handle both cold and hot temperatures.
Low Self-Discharge: Keeps charge longer.
Eco-Friendly: Better for the environment.
No Cobalt: Doesn’t use cobalt, making it more sustainable.
