What is the N/P ratio of lithium-ion batteries?

The N/P ratio of lithium-ion batteries refers to the ratio of the negative electrode (N) capacity to the positive electrode (P) capacity. It is an important design parameter that influences the performance, safety, and longevity of the battery.

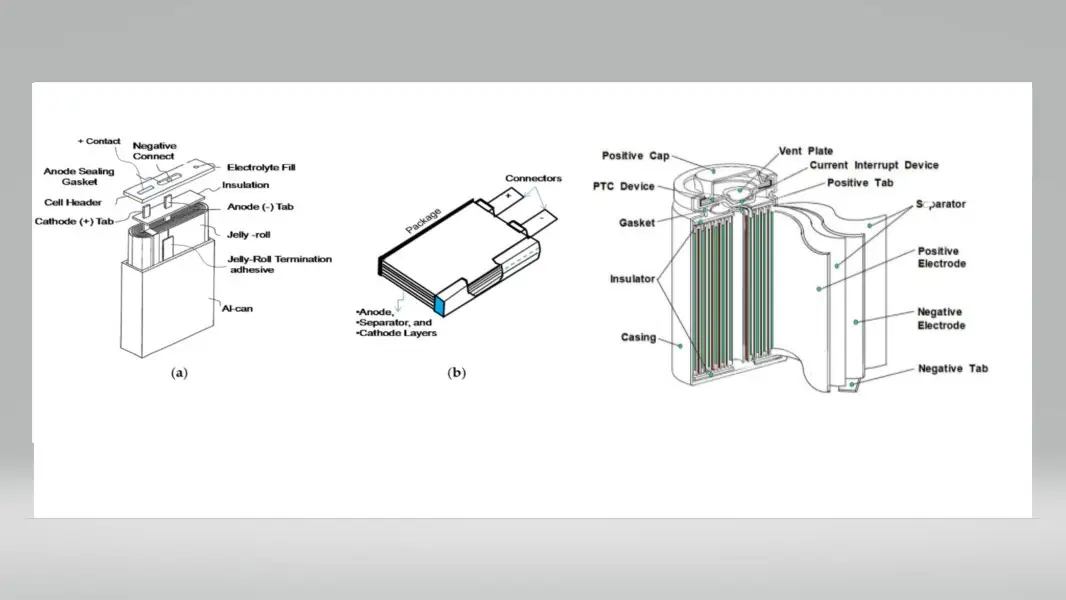

Understanding N/P Ratio

Negative Electrode (N): Typically made of graphite, silicon, or other materials capable of storing lithium ions during charging. It has a specific capacity, measured in mAh/g, representing how much lithium it can store.

Positive Electrode (P): Commonly made of lithium transition metal oxides (e.g., NMC, LFP) or other cathode materials.Its capacity is also measured in mAh/g.

N/P Ratio:

Defined as:

It is dimensionless and typically falls within a range of 1.0 to 1.2 in commercial lithium-ion batteries.

Importance of the N/P Ratio

Safety: A slightly higher N/P ratio (e.g., 1.1–1.2) ensures that the anode has excess capacity to store lithium ions, reducing the risk of lithium plating on the anode surface during charging.

Lithium plating can lead to dendrite formation, internal short circuits, and thermal runaway.

Cycle Life: A balanced N/P ratio prevents overutilization of either electrode, reducing stress and degradation during repeated charge-discharge cycles.

Excessively high N/P ratios can lead to inefficiencies and increased battery weight, while very low N/P ratios can cause accelerated aging.

Energy Density: The N/P ratio affects the energy density of the battery. A lower N/P ratio may maximize energy density but increases safety risks.

Voltage Stability: A well-balanced N/P ratio ensures stable voltage profiles during charge and discharge, improving the battery’s usability and compatibility with electronic systems.

Optimizing the N/P Ratio

The ideal N/P ratio depends on the specific application and desired performance characteristics:

High-Power Applications: For applications requiring high power (e.g., electric vehicles), a slightly higher N/P ratio may be used to enhance safety and cycle life.

High-Energy Applications: For portable electronics where energy density is critical, manufacturers may aim for an N/P ratio closer to 1.0, carefully managing risks like lithium plating.

Extreme Conditions: In applications exposed to extreme temperatures or charging conditions, a higher N/P ratio is often preferred to provide additional safety margins.

Challenges in N/P Ratio Design

Electrode Balancing: Achieving the right N/P ratio involves precise electrode material deposition and thickness control during manufacturing.

Material Degradation: The capacity of the electrodes may degrade at different rates, altering the N/P ratio over the battery’s lifetime.

Conclusion

The N/P ratio is a critical design parameter in lithium-ion batteries that balances performance, safety, and longevity. While typical ratios range between 1.0 and 1.2, the specific value is optimized based on the application and operating conditions. Properly managing the N/P ratio ensures efficient lithium utilization, minimizes safety risks, and extends the battery’s life.
